Frontier LP7500 - Exposure Advance Unit (Positions of Electrical Parts)

Position of electrical parts (printer section)
1/1
6. Electrical parts
63070
63070
Exposure advance unit (positions of electrical parts)
!
!!

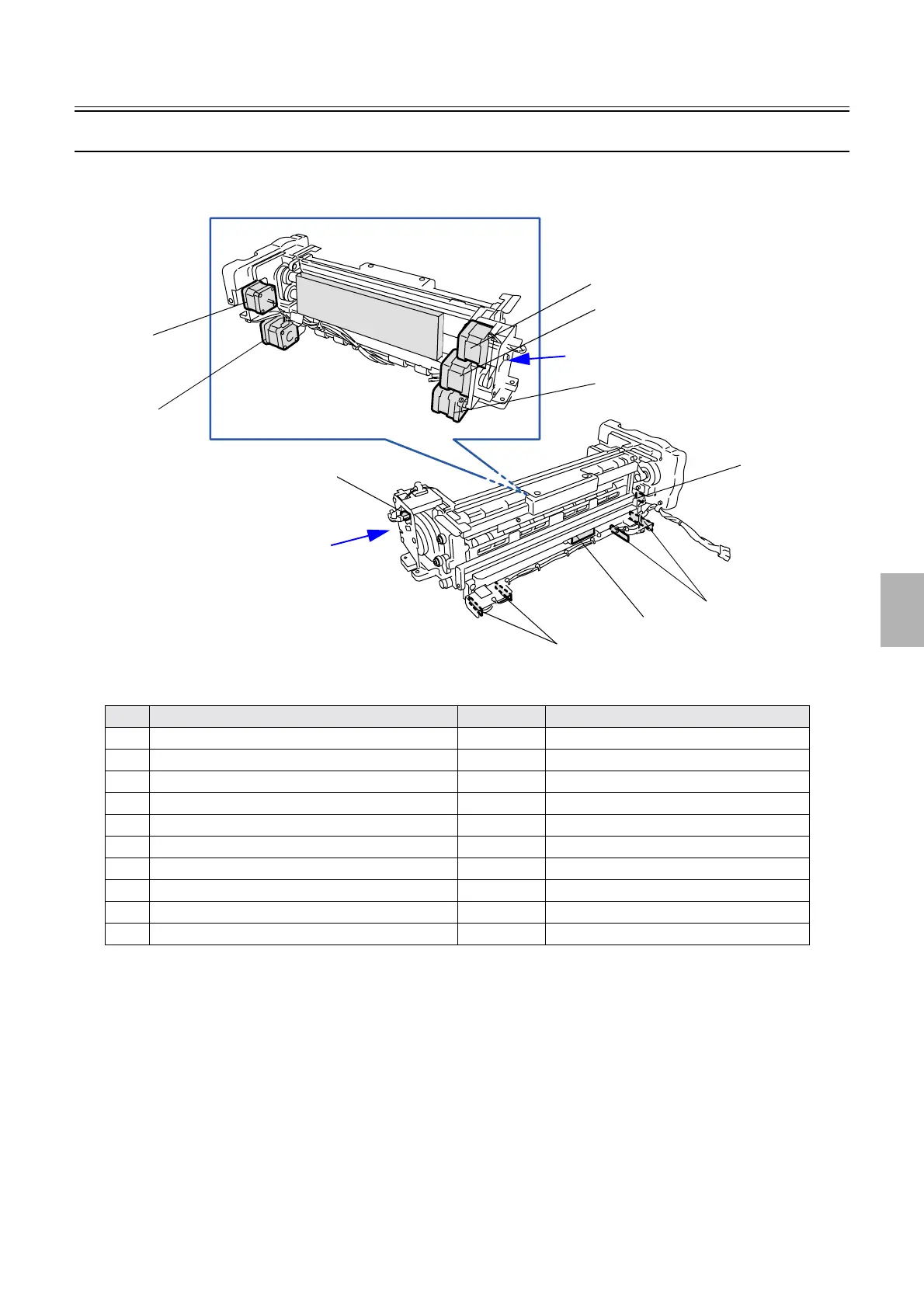

! Layout diagram
Exposure advance unit
No. Name Symbol Remarks
1 Zigzagging correction sensor (left) SE12
2 Zigzagging correction sensor (right) SE13
3 Exposure start sensor SE14
4 Exposure advance pressure change sensor 1 SE15
5 Exposure advance pressure change sensor 2 SE16
6 Exposure advance motor 1 PM9
7 Exposure advance motor 2 PM11
8 Exposure advance pressure change motor 1 PM10
9 Exposure advance pressure change motor 2 PM12
10 Exposure advance pressure change motor 3 PM20
1
5
3
2
6
10
8
7
4
Front
Front
9
G085236
