Paper advance operation
1/4
5. Operation sequence
55300
55300
Exposure advance operation
This section explains the paper advance operation via the exposure advance unit during exposure.
!
!!

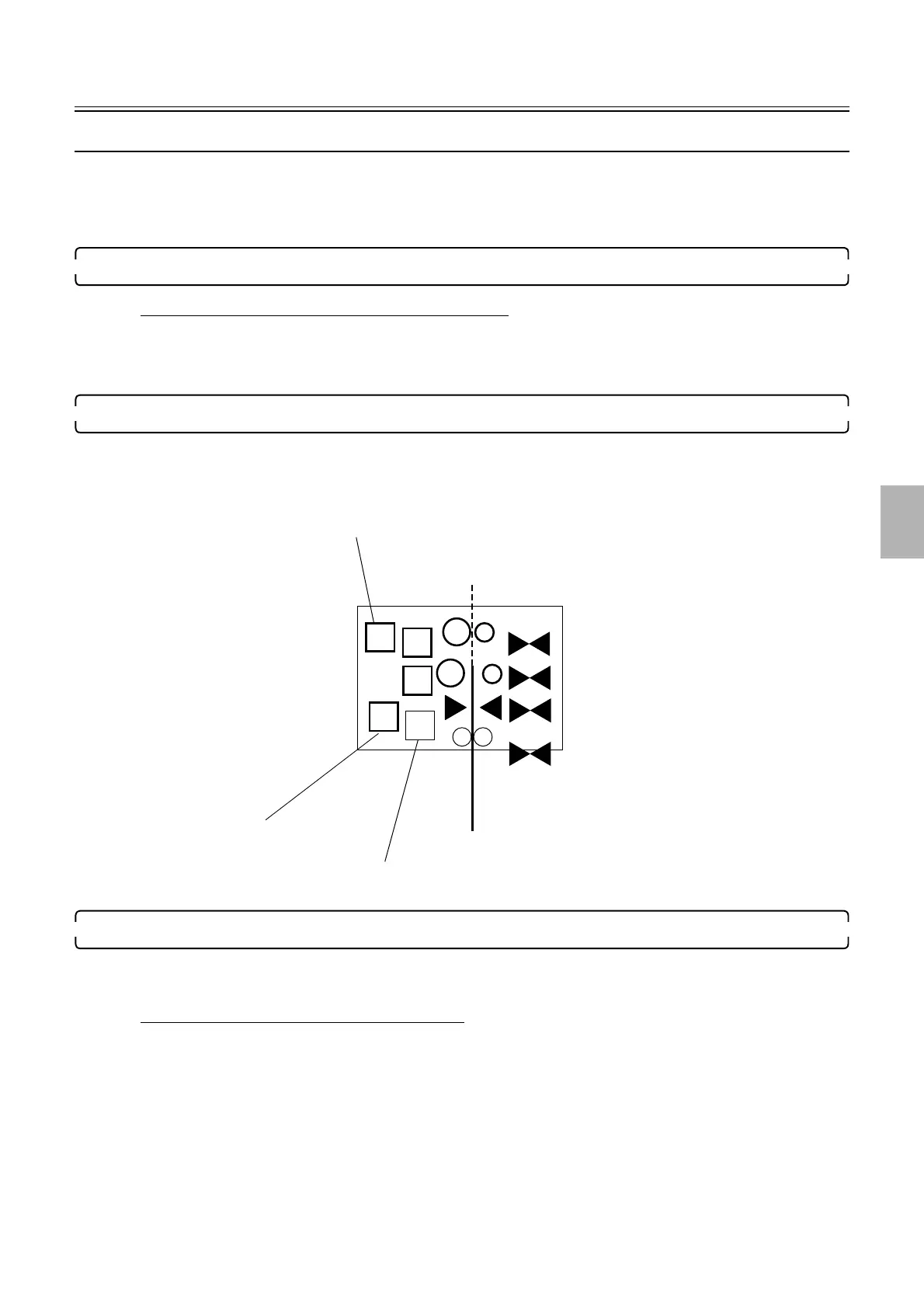

! Flowchart
1. The paper is transferred from arm unit 1.
The status of the exposure advance unit is as follows.
• Exposure advance pressure change motor 1: ON (released)/OFF
• Exposure advance pressure change motor 2: ON (inlet pressure released)/OFF
• Exposure advance pressure change motor 3: ON (exit pressured)/OFF
2. The paper is exposed and advanced.
• Exposure advance pressure change motor 1: ON (pressure)/OFF
• Exposure advance motors 1 and 2: ON
3. The paper leading end is advanced for the specific length from the exposure advance inlet roller.
• Exposure advance pressure change motor 2: ON (inlet pressure)/OFF
• Exposure advance pressure change motor 3: ON (exit pressure released)/OFF
If exposure advance pressure does not change
• ☞ No. 06137-00001
Exposure Advance Pressure Change Motor 2 operation error.
•
☞No. 06186-00001
Exposure Advance Pressure Change Motor 3 operation error.
Exposure advance motor 2
Exposure advance motor 1
Exposure advance pressure change motor 1
G077211
