5/5
5. Operation sequence
55230
55230

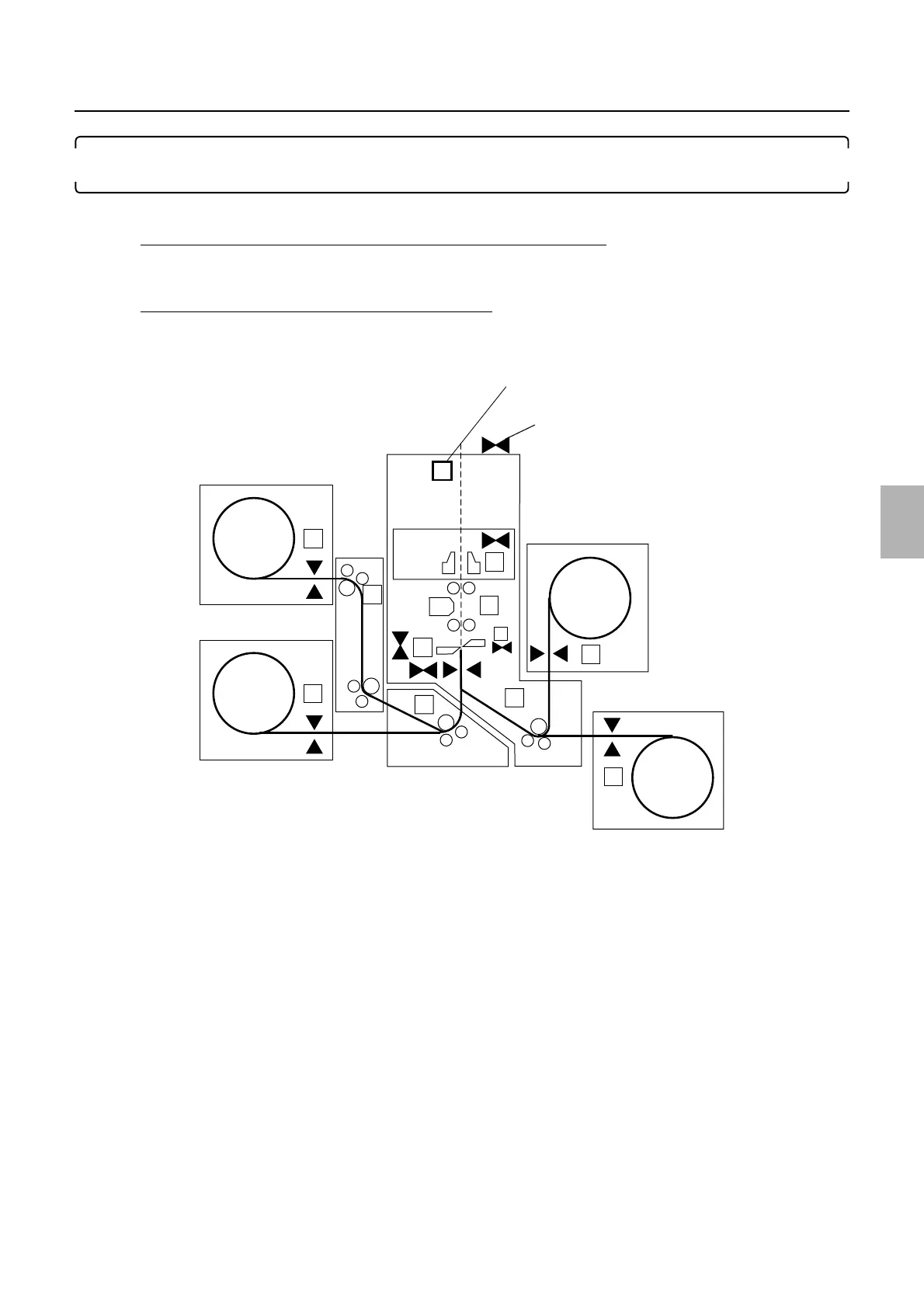

Paper advance operation
7. When the exposure start sensor turned light from dark, arm unit 1 moves to the paper receiving
standby position.
• Paper supply arm motors (right and left): ON (reverse)/OFF
When zigzagging correction sensors (right and left) do not turn light:
• ☞ No. 06135-00002
Arm Unit 1 operation error.
When the exposure start sensor does not turn light:
• ☞ No. 06209-00001
Paper has jammed in the Exposure Advance Unit.
Paper supply arm motor (right or left)
Zigzagging correction sensor (right or left)
Note: The thick solid line indicates the paper.
G068500
