5. Operation sequence
55300
55300
Paper advance operation
4. The paper leading end is advanced for the another specific length from the exposure advance inlet
roller.
• Exposure advance pressure change motor 1: ON (released)/OFF
• Exposure advance motor 1: OFF
If exposure advance pressure does not change
• ☞ No. 06136-00001
Exposure Advance Pressure Change Motor 1 operation error.
5. The paper is advanced to the exposure position.
• The laser emission is started.
6. The paper leading end is advanced for the specific length from the exposure advance exit roller.
• Exposure advance pressure change motor 3: ON (exit pressured)/OFF
If exposure advance pressure cannot be changed
• ☞ No. 06186-00002
Exposure advance pressure change motor 2
Exposure advance pressure change motor 3

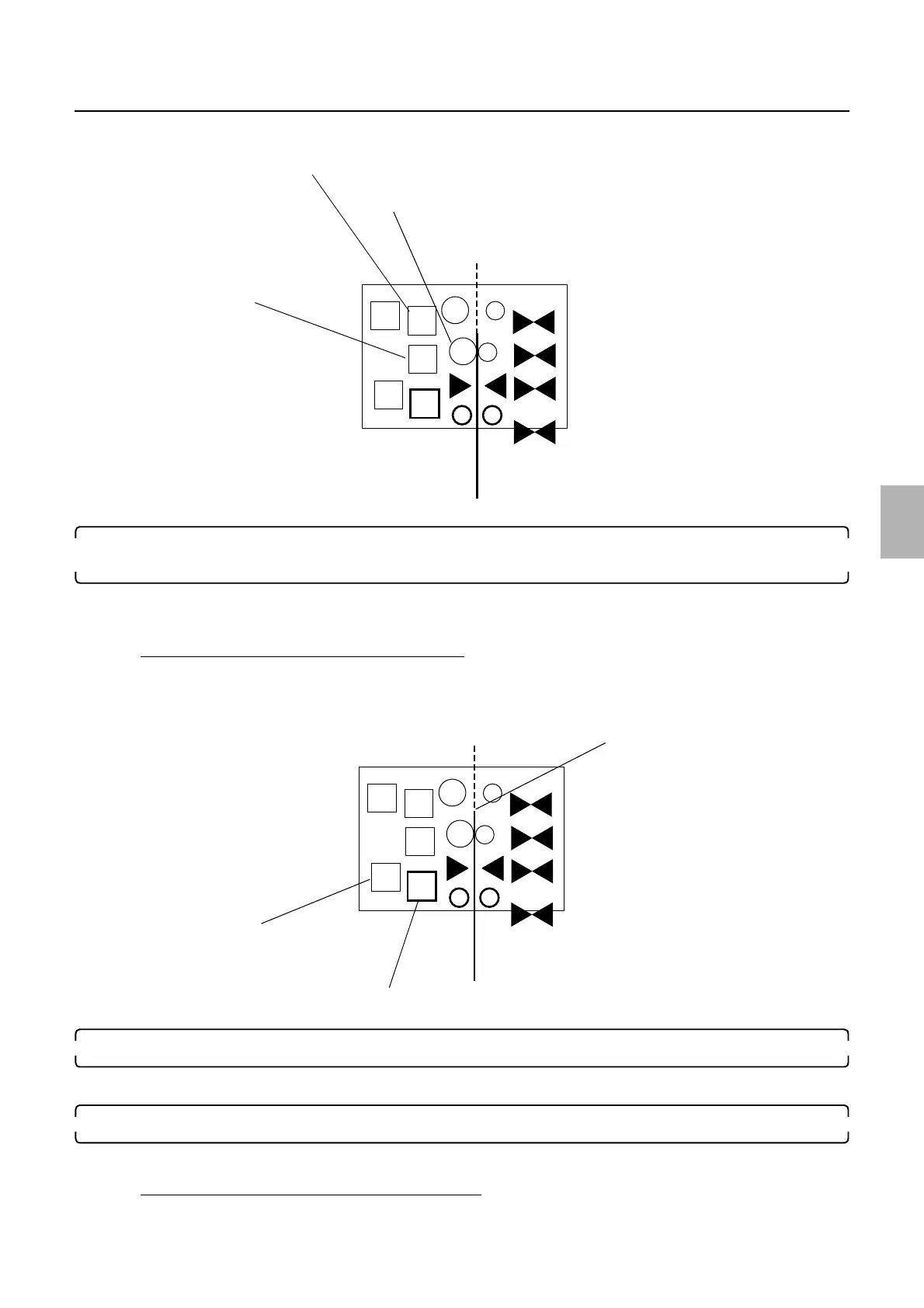

Exposure advance inlet roller
G077212
Exposure advance pressure change
motor 1
Exposure starting
position
Exposure advance motor 1
G077212
