2. Replacement and adjustment of parts
27810
27810
Replenishment package unit
(3) Prepare a container for the replenishment solution or water to be output.
IMPORTANT
• For measurements of two or more replenishment solutions, use a different container for each solution.
If no different containers are available, clean the container before using.
(4) Press on the Pump Output Amount Setting display and select Pump Output Amount Setting.
(5) Select the pump for output.
(6) Operate the pump by pressing the Manual sorter switch.
(7) Check that no air remains in the hose. Then repeat step (5) until the replenishment solution or water comes to the
exit of the replenisher pipe or the water supply pipe.
(8) Attach the air exhaust tool to the replenisher pipe.
IMPORTANT
• When removing air from two or more chemicals, be sure to start from the CD-A pump.
• Before removing air from the pumps, be sure to clean the tool. If the tool is not cleaned, contamination
and chemical reaction may occur.
NOTE
• The air exhaust tool is a service tool. See the Service personnel tool list. ☞80310
(9) Exhaust the air from the replenisher pump and the water supply pump by pulling the cylinder of the syringe from
the air exhaust tool with one stroke.
Remove the air exhaust tool from the replenisher pipe or the water supply pipe, and discharge the air, water, or
replenishment solution.
IMPORTANT
• When the air is exhausted by using the air exhaust tool, the float of the package may be sucked
downward, and an attention message such as Replace the Replenishment Package with a new one.
may be displayed.
There may still be some replenisher solution left in the package. Remove the replenishment package
from the replenishment unit and shake it to check if the float is rising.
• If the injection syringe slips out of the air exhaust tool, replenishment solution or water may splash.
(10) After air has been exhausted by the air exhaust tool, check that no air remains in the hose.

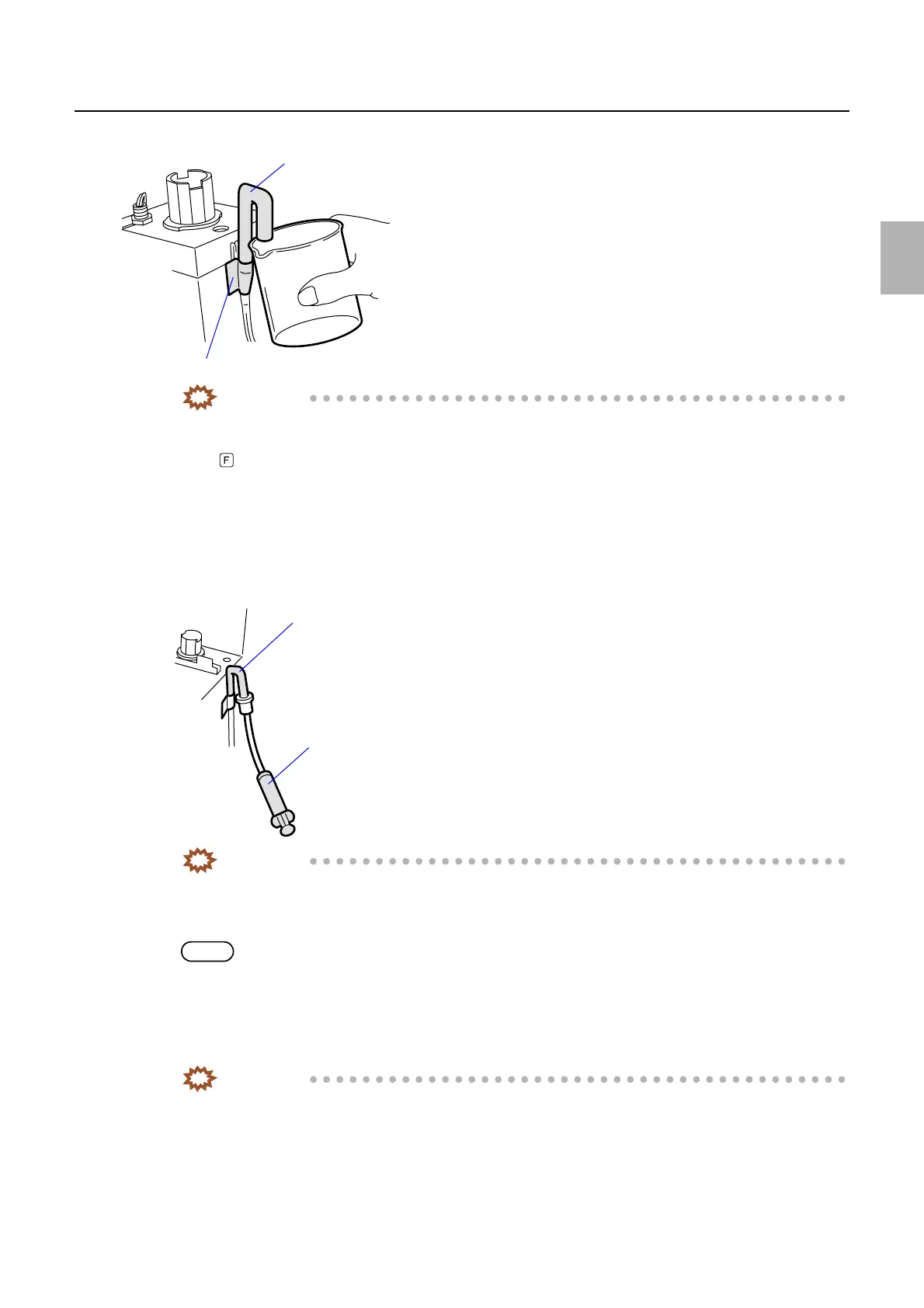

Tape
Replenisher pipe and water
supply pipe
G050889
Air exhaust tool
Replenisher pipe and water
supply pipe
G050890
