3/3
2. Replacement and adjustment of parts
27320
27320
Drive section

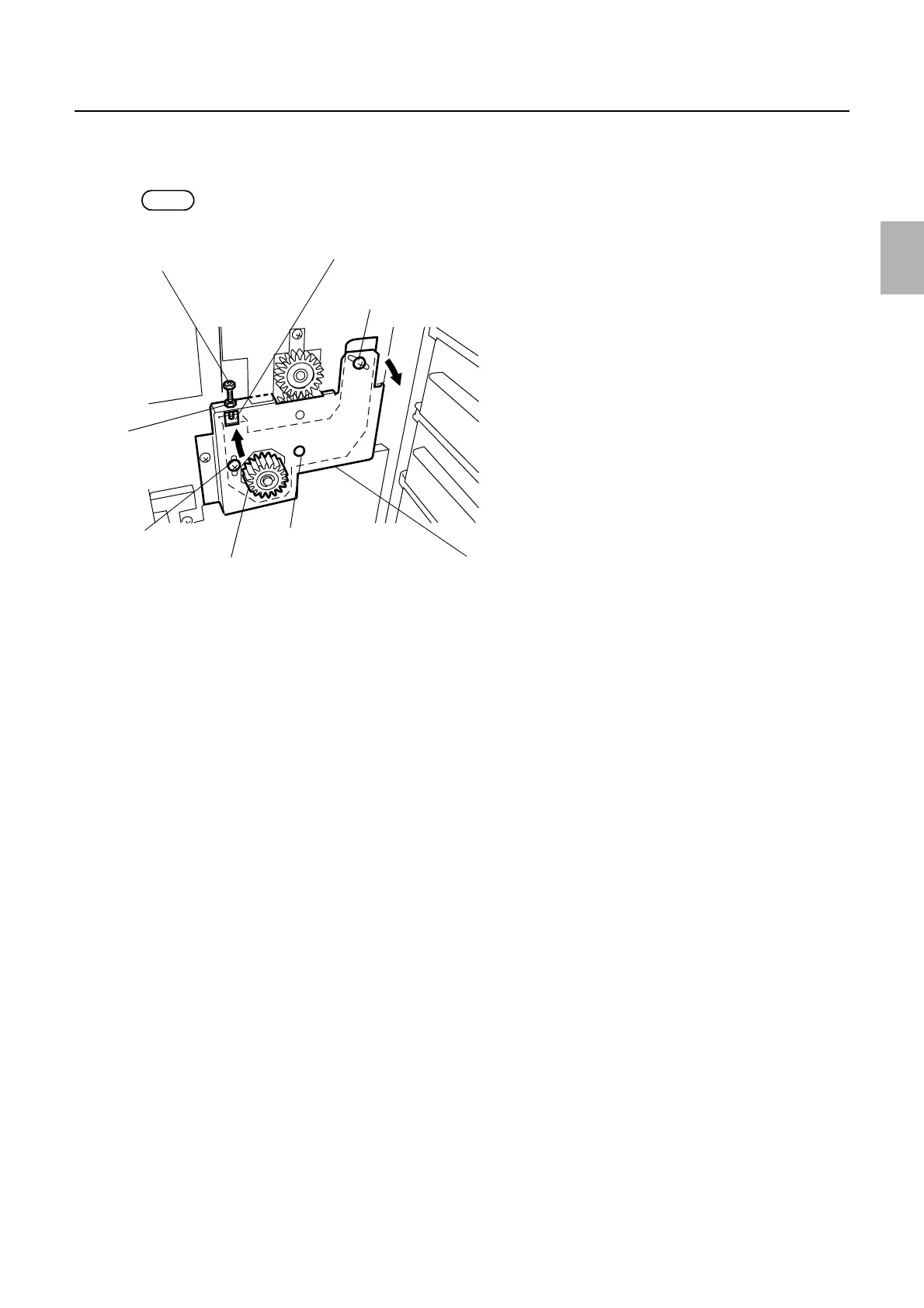

8. Move the drive adjusting plate to the direction indicated by the arrow, and tighten two screws for A and
B section at the position where the end of the adjusting bolt touches the C side of the gear adjustment
plate.
NOTE
• The position of the adjusting bolt and the C side of the gear adjusting plate can be checked from the front hole.
9. Attach the dryer rack (lower).
C side (gear adjusting plate)
Adjusting bolt
Fulcrum
Gear of the gear adjusting plate
Screw A
Lock nut
Drive unit (lower)
Screw B
G054667
