Frontier LP7500 - Page 153

2/2
2. Replacement and adjustment of parts
27430-5
27430-5
Order sorter section

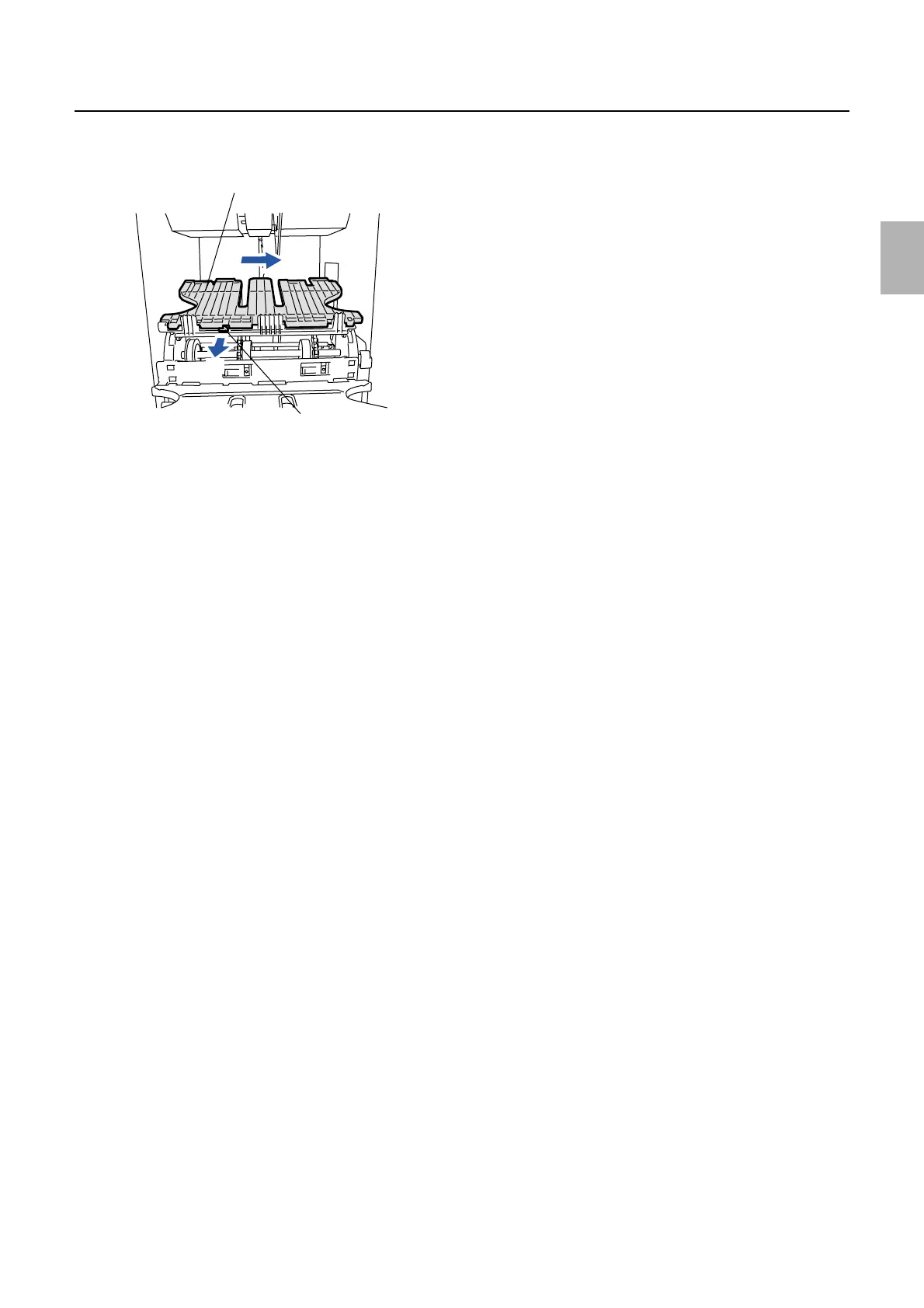

2. Push the pawl of the paper tray (3) in the direction indicated by arrow A, then remove the paper tray (3)
in the direction indicated by arrow B.
!
!!
! Adjustment after replacement
• None
A
B
Pawl
Paper tray (3)
G074245
