2. Replacement and adjustment of parts
27640
2/2
27640
Tablet replenishment section

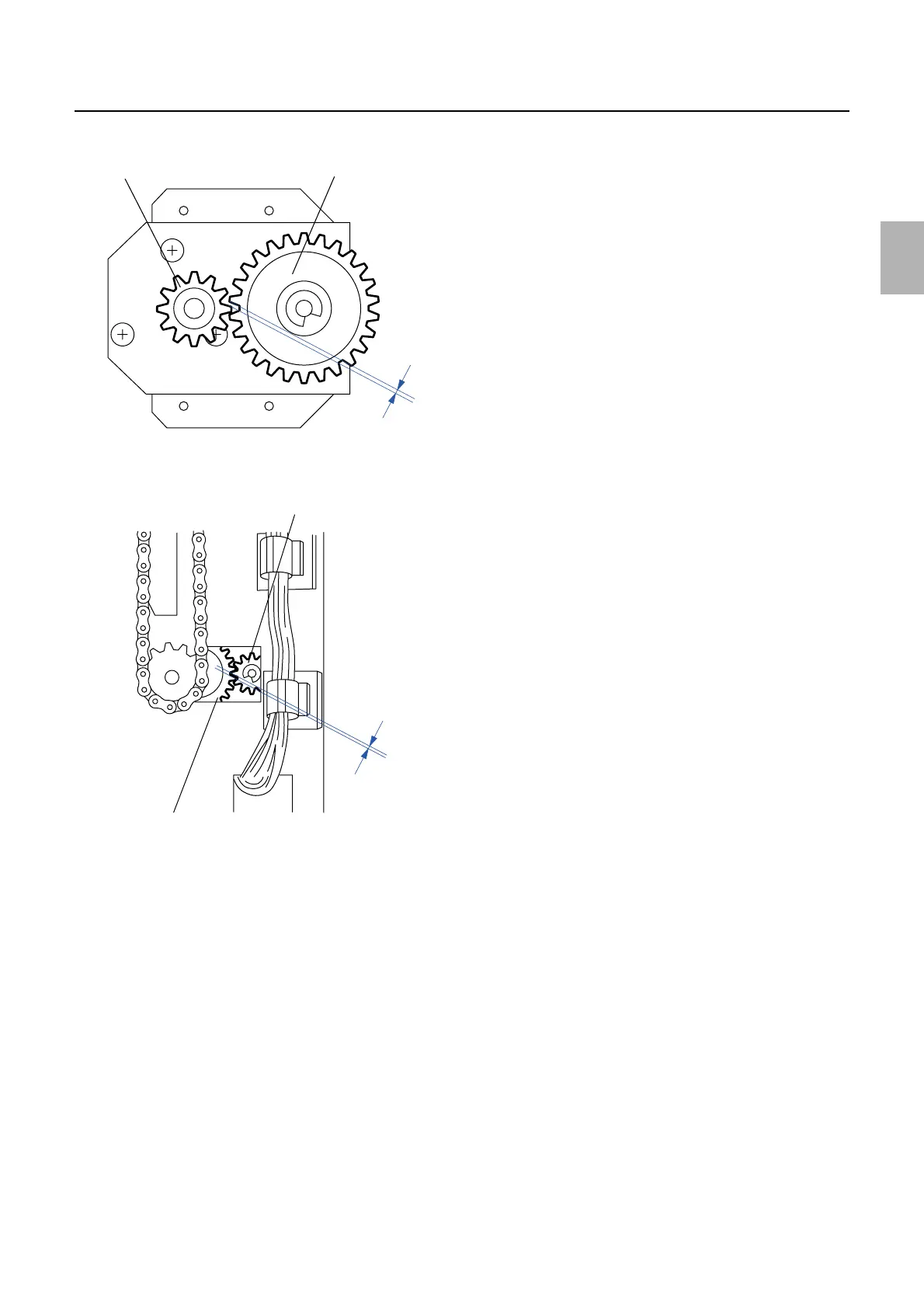

9. Check the backlash between gear (12T) and the upper idle gear.
10. Reassemble the parts.
11. Check the backlash between the friction roller gear and the idle gear.
12. Check the elevator operation via Output Check.
☞35320
Gear (12T)
Upper idle gear
0.2 mm
G050736
Upper idle gear
0.2 mm
Friction roller gear
G050737
