Printer Mechanical Adjustment
NOTE
• A magenta arrow is shown on the Test Print Confirmation print.
• A piece of paper with the advance length 178 mm is printed.
• The paper width, 〈A ####(#)〉 is printed as the CVP imprinting.
!
!!
! Adjusting procedure
1. Confirm that Exposure Magnification Correction and Exposure Position Adjustment have been
completed.
☞36020
☞36030
2. Carry out Test Print of F: Functions.
IMPORTANT
• Check line 160 usually.
• If you do not have paper of 178 mm or wider, make a test print with the widest paper you have, then measure
the length of the most outside line.
IMPORTANT
• Check the line using the loupe.
• Loupe is a service personnel tool. See Service personnel tool list.
☞80310

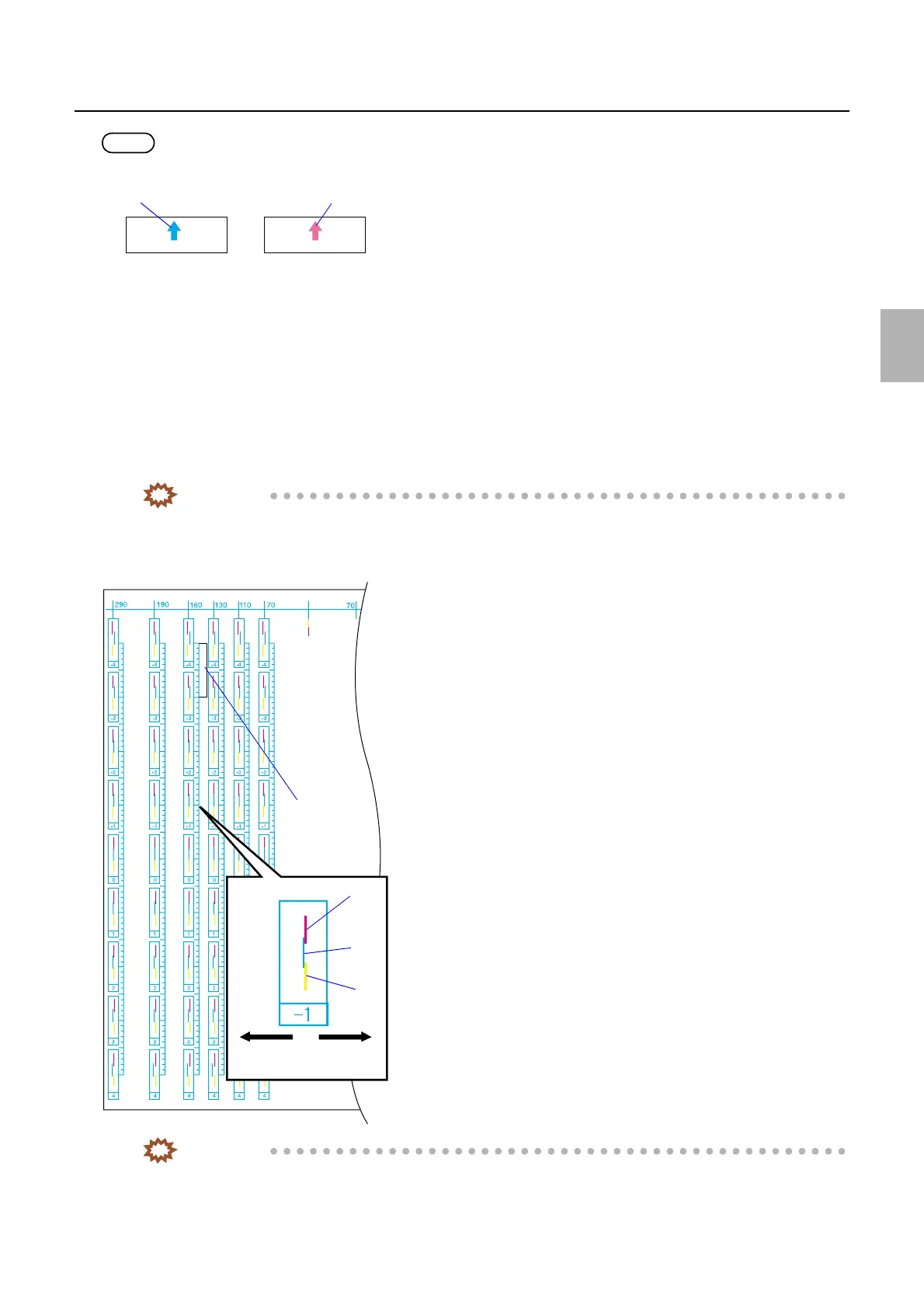

Test print
Test Print (Confirmation)
G066121
M
C
Y
+correction
−correction
1 dot
G068460
