2. Replacement and adjustment of parts
20010
2/2
20010

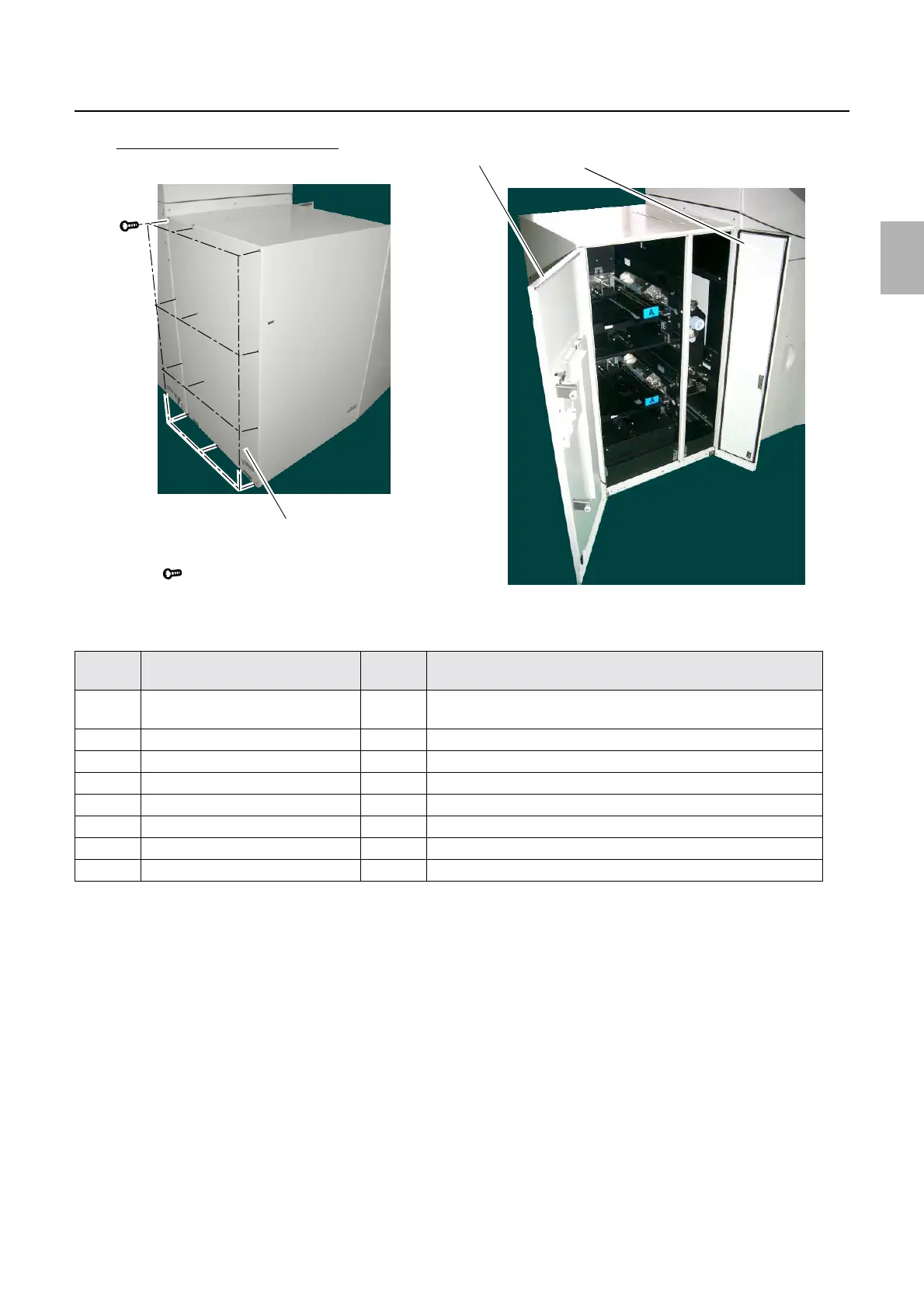

Removing covers
No. Name Screw
(Q'ty)
Remarks
1 Printer side cover 8 When the triple magazine unit is equipped, the number of screws for
the printer side cover is six.
2 Printer rear cover 16
3 Printer door 1 -
4 Printer door 2 -
5 Printer door 3 -
6 Printer top cover -
7 Printer door 4 -
8 Rear cover 12
When equipped with the quad magazine unit
Remove screws with this mark.
8
7
5
G086486
