2. Replacement and adjustment of parts
20110
3/3
20110

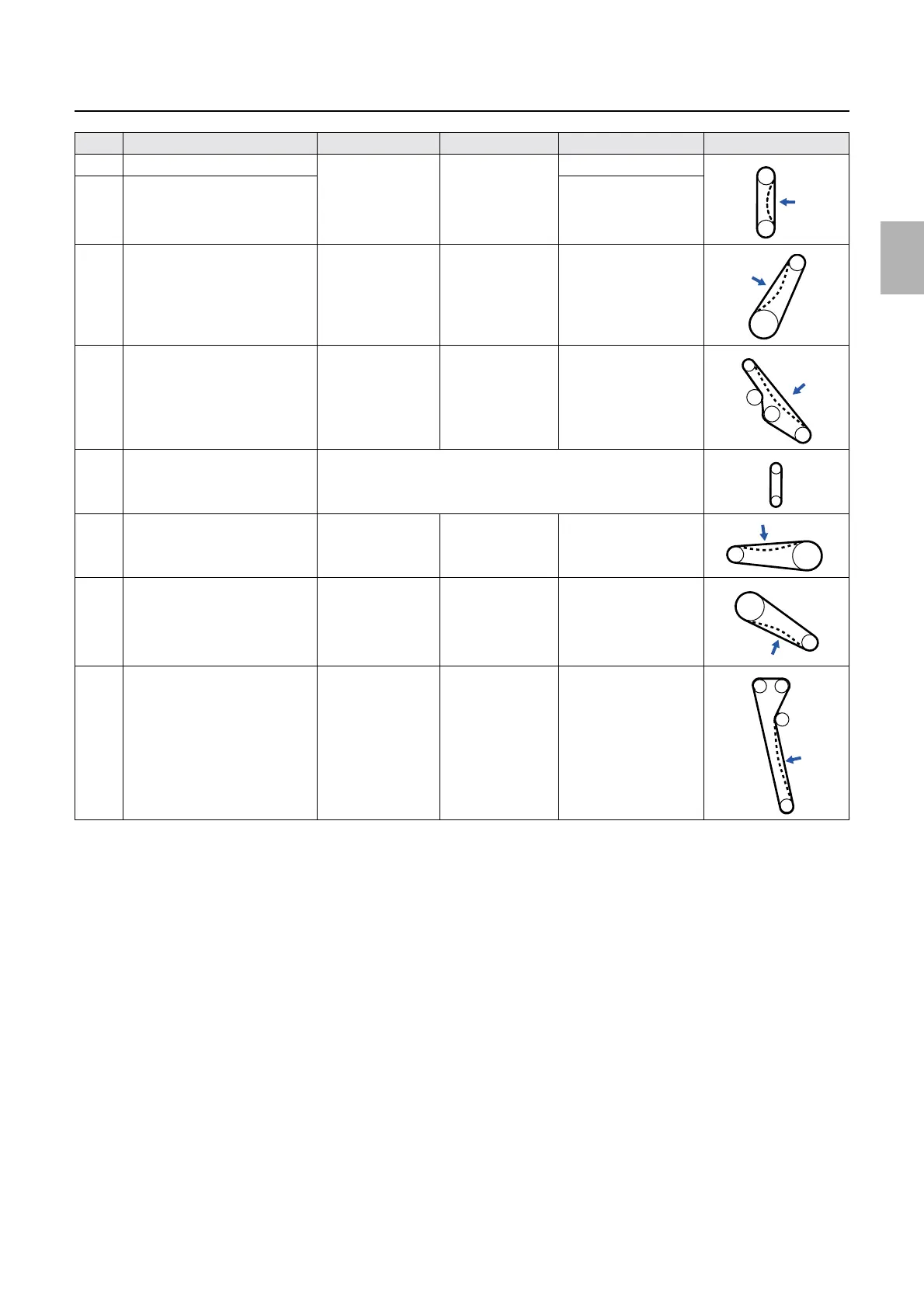

Adjusting belt tension
19 Lane select motor (left) belt 1.8±0.3N
(178±33 g)
5.0 mm Lane select motor (left)
20 Lane select motor (right) belt Lane select motor
(right)
21 Paper advance motor 3 belt 5.7±1.0N
(576±97 g)
1.0 mm Paper advance motor 3
22 Paper advance belt 2.7±0.5N
(270±53 g)
2.0 mm Tension pulley
23 Advance belt No need to adjust the belt tension.
24 Paper magazine motor A2 belt 5.4±1.2 N
(546±117 g)
1.5 mm Paper magazine motor
A2
25 Paper supply motor A2 belt 6.26±1.33 N
(639±136 g)
1.0 mm Paper supply motor A2
26 Width change motor A2 belt 0.3±0.1N
(33±9 g)
1.0 mm Width change motor A2
No. Name Force Deflection Adjusting point Illustration
