3/3
5. Operation sequence
55200
55200

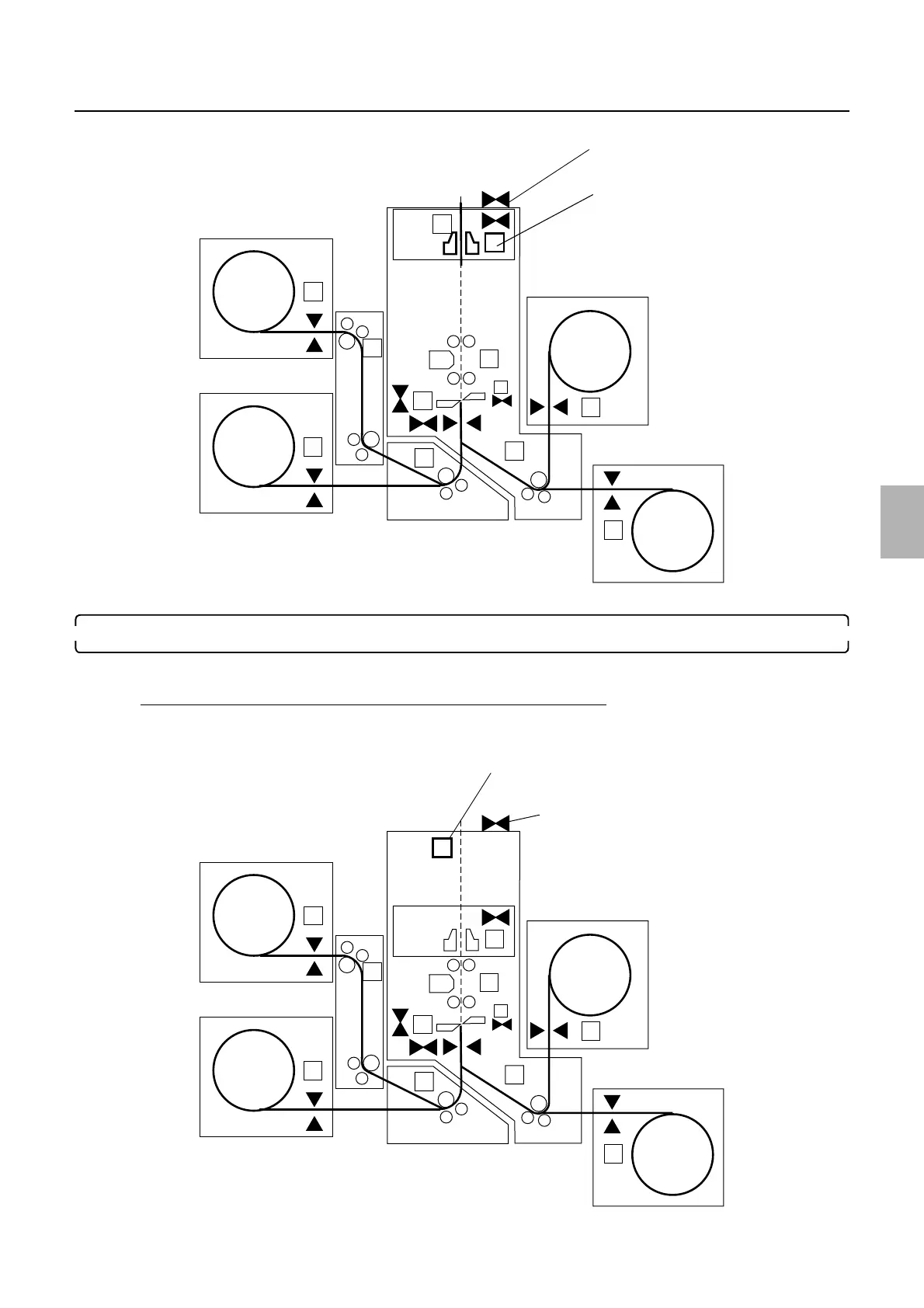

Paper advance operation
5. Arm unit 1 moves to the paper receiving standby position.
• Paper supply arm motors (right and left): ON (reverse)/OFF
When zigzagging correction sensors (right and left) do not turn light:
• ☞ No. 06135-00002
Arm Unit 1 operation error.
Paper hold motor
Note: The thick solid line indicates the paper.
Paper hold sensor
G068492
Paper supply arm motor (right or left)
Zigzagging correction sensor (right or left)
Note: The thick solid line indicates the paper.
G068493
