5. Operation sequence
55410
3/4
55410

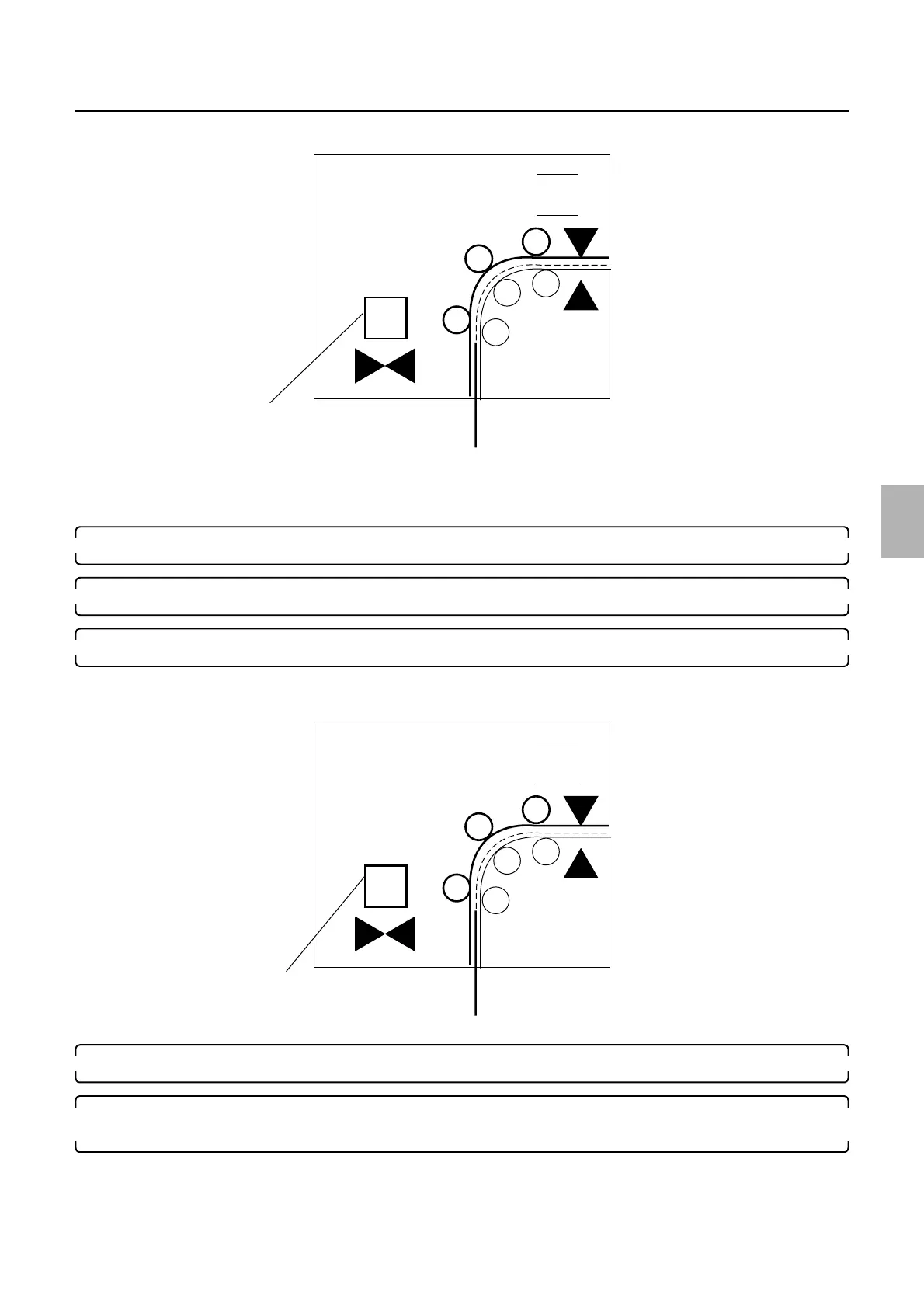

Paper advance operation
!
!!
! When the paper advance length is 528.1 mm or more
1. Paper is advanced to paper advance unit 1.
2. The paper leading end passes 15 mm before the advance inlet roller.
3. Paper advance unit 1 releases the pressure.
• Pressure guide motor: ON (released)/OFF
4. The paper rear end passed the exposure center by 2 mm.
5. When paper advance unit 1 pressures the paper, the paper advance motor 2 starts working to
advance the paper at the exposure speed.
• Pressure guide motor: ON (pressured)/OFF
• Paper advance motor 2: ON
Pressure guide motor
G069836
Pressure guide motor
G069836
