5/6
5. Operation sequence
55500
55500
Paper advance operation

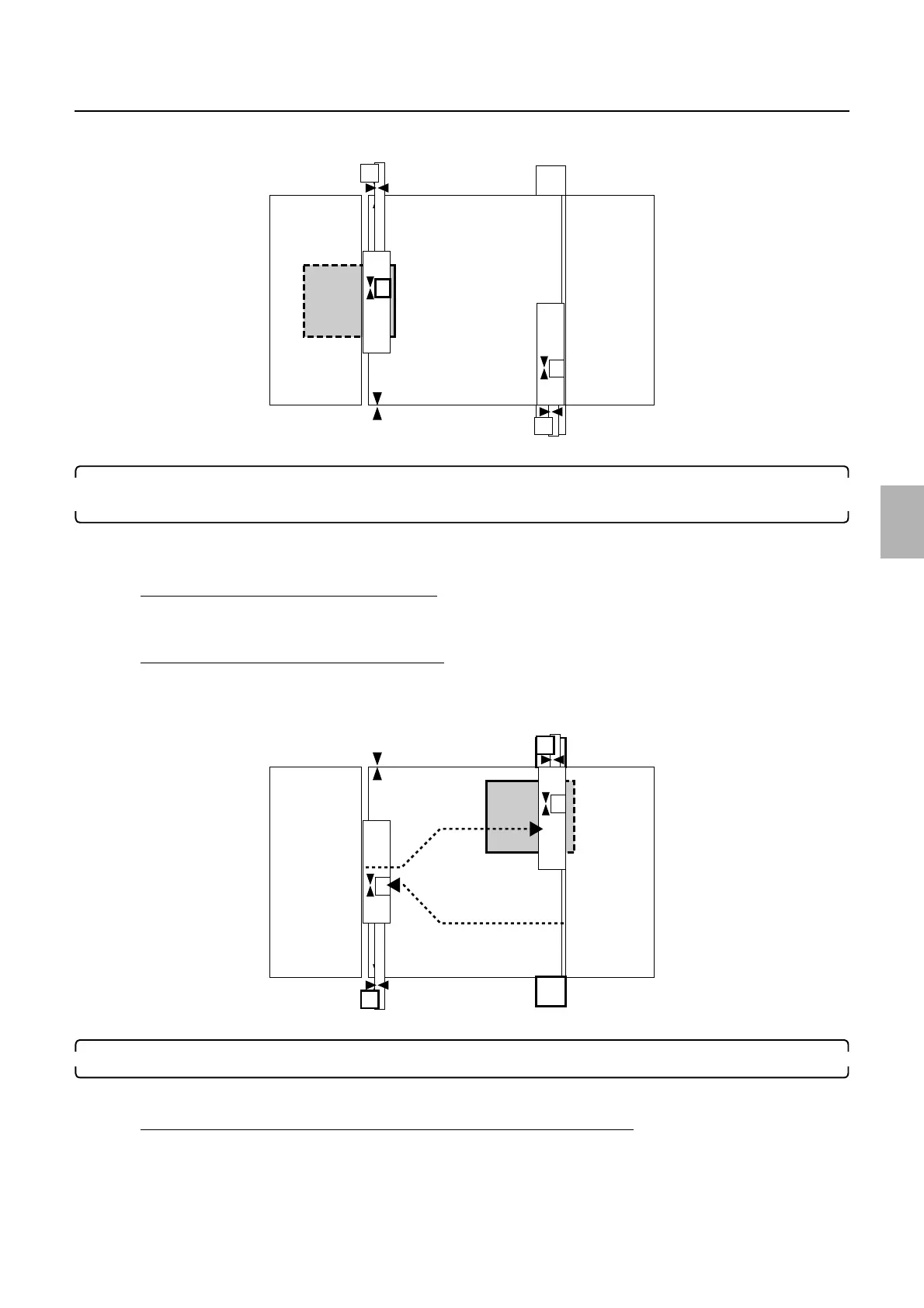

10. Arm unit 2 (left) moves to the processor loading unit and arm unit 2 (right) moves to the paper
receiving position of the paper advance unit 1.
• Lane select motors (right) (left): ON/OFF
• Paper advance arm motors (right) (left): ON/OFF
If the arm sensor (left) does not turn LIGHT
• ☞ No. 06138-00002
Paper Advance Arm Motor (Left) operation error.
If the arm sensor (right) does not turn DARK
• ☞ No. 06139-00001
Paper Advance Arm Motor (Right) operation error.
11. Arm unit 2 (left) releases pressure.
• Paper advance pressure change motor (left) :ON (released)/OFF
If the paper advance pressure change sensor (left) does not turn LIGHT
• ☞ No. 06142-00002
Paper Advance Pressure Change Motor (Left) operation error.
G069845
G069944
