5. Operation sequence
56300-5
56300-5

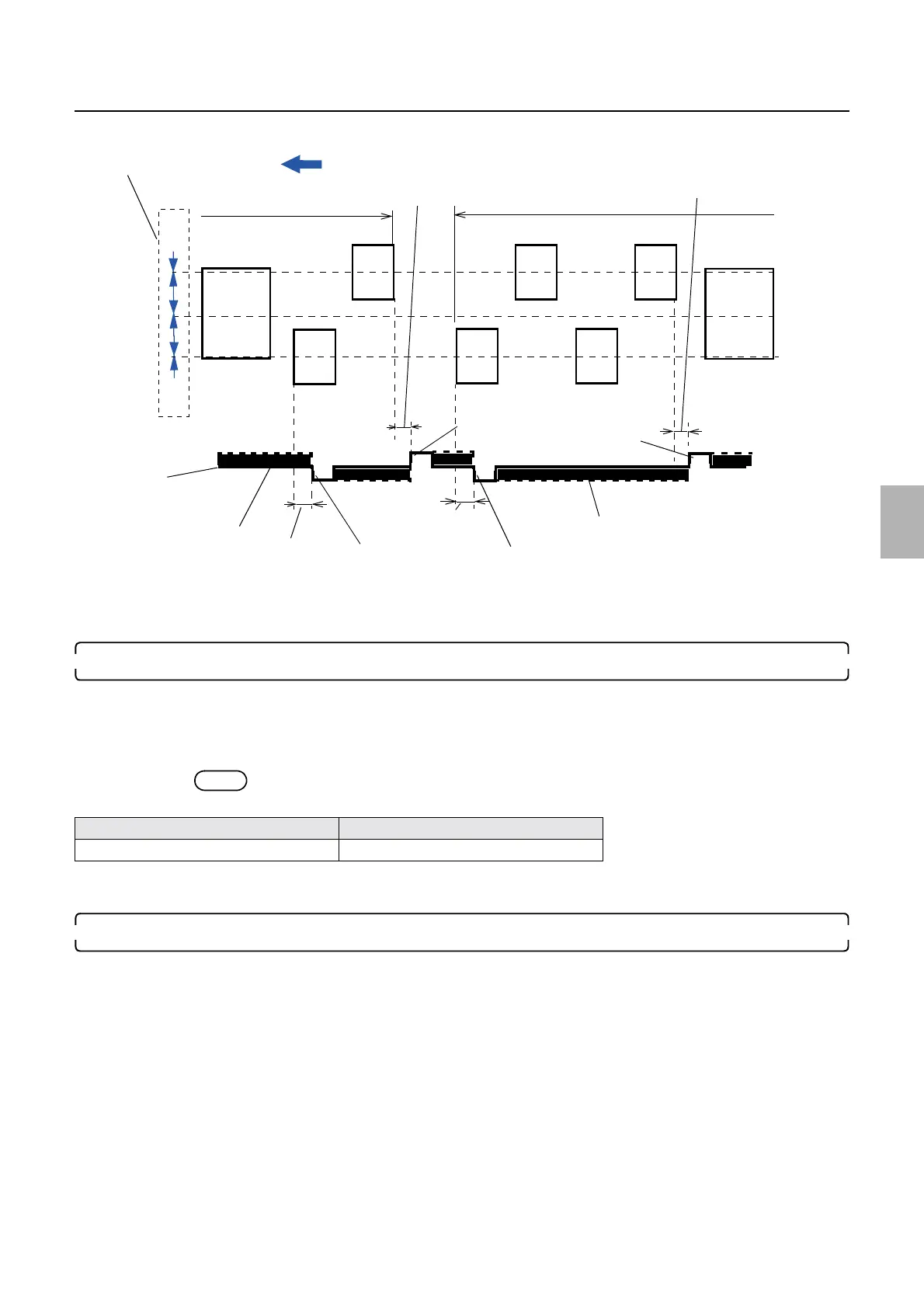

Print sorter unit operation
!
!!
! When the paper guide moves to closed position (lower)
1. The print sensor detects the paper leading end.
• The paper guide motor: ON (forward)
When the following three conditions are fulfilled, the paper guide moves.
• Condition 1: The paper guide is open (raised).
• Condition 2: The detected paper is in the following size.
NOTE
• If the detected paper has this size, the paper guide should be close.
• Condition 3: The print receiving tray is not moving.
2. There is no proceeding order in the processor.
• The paper guide motor: ON (forward)
When the following two conditions are fulfilled, the paper guide moves.
• Condition 1: The paper guide is open (raised).
• Condition 2: After all proceeding order is output, move the print receiving tray by pressing the manual sorter
switch.
Paper width Advance length
Between 82.5 and 152 mm Between 82.5 and 305 mm
Paper advance direction
Dryer rack
Order
Order
Paper guide motor: OFF
The paper guide motor: ON (forward)
The paper guide motor: ON (reverse)
A specified
time
A specified
time
Position that the paper guide is
closed.
Position that the paper guide is
opened.
A specified
time
A specified
time
G082022
