5. Operation sequence
57010
57010
Replenishment operation sequence [F]
6. P1R/P2RA/P2RB (lower) replenishment solution level sensors are off.
• P1R (Lower) Replenishment Solution Level Sensor: OFF
• P2RA (Lower) Replenishment Solution Level Sensor: OFF
• P2RB (Lower) Replenishment Solution Level Sensor: OFF
If P1R/P2RA/P2RB (lower) replenishment solution level sensors are on
• ☞No. 05923[F] Solution remains in the replenishment tank.
7. The replenishment cartridge is moved to lower position.
• Replenisher Cartridge Open Motor: ON
• Replenisher Cartridge Position Sensor (Upper): DARK → LIGHT
If Replenisher Cartridge Position Sensor (Upper) does not turn LIGHT
• ☞No. 05900[F]−0001Replenisher cartridge open motor operation error.
8. The replenishment cartridge is stopped at lower position.
• Replenisher Cartridge Open Motor: OFF
• Replenisher Cartridge Position Sensor (Lower): LIGHT → DARK
If Replenisher Cartridge Position Sensor (Lower) does not turn DARK
• ☞No. 05900[F]−0002Replenisher cartridge open motor operation error.
9. The system waits until the replenishment solution falls.
P17
P2RAP1R
PSR
R P 2R P 3R P 4
P2RB
R P 1
SE63
SE64
SE65
SE66
SE67
SE68
LSE7
LSE8

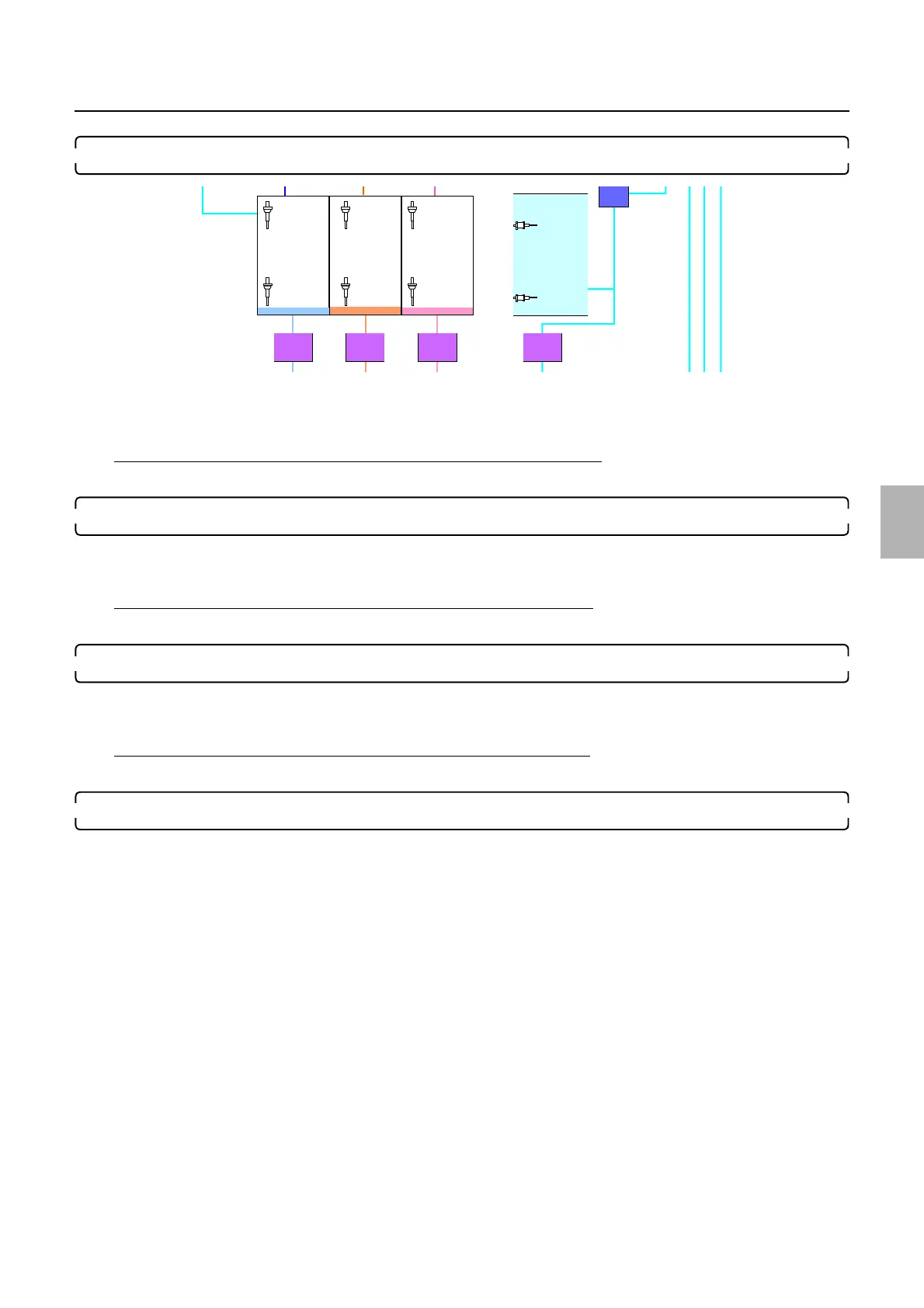

Replenisher tank
G085081
