6. Electrical parts
63051
63051

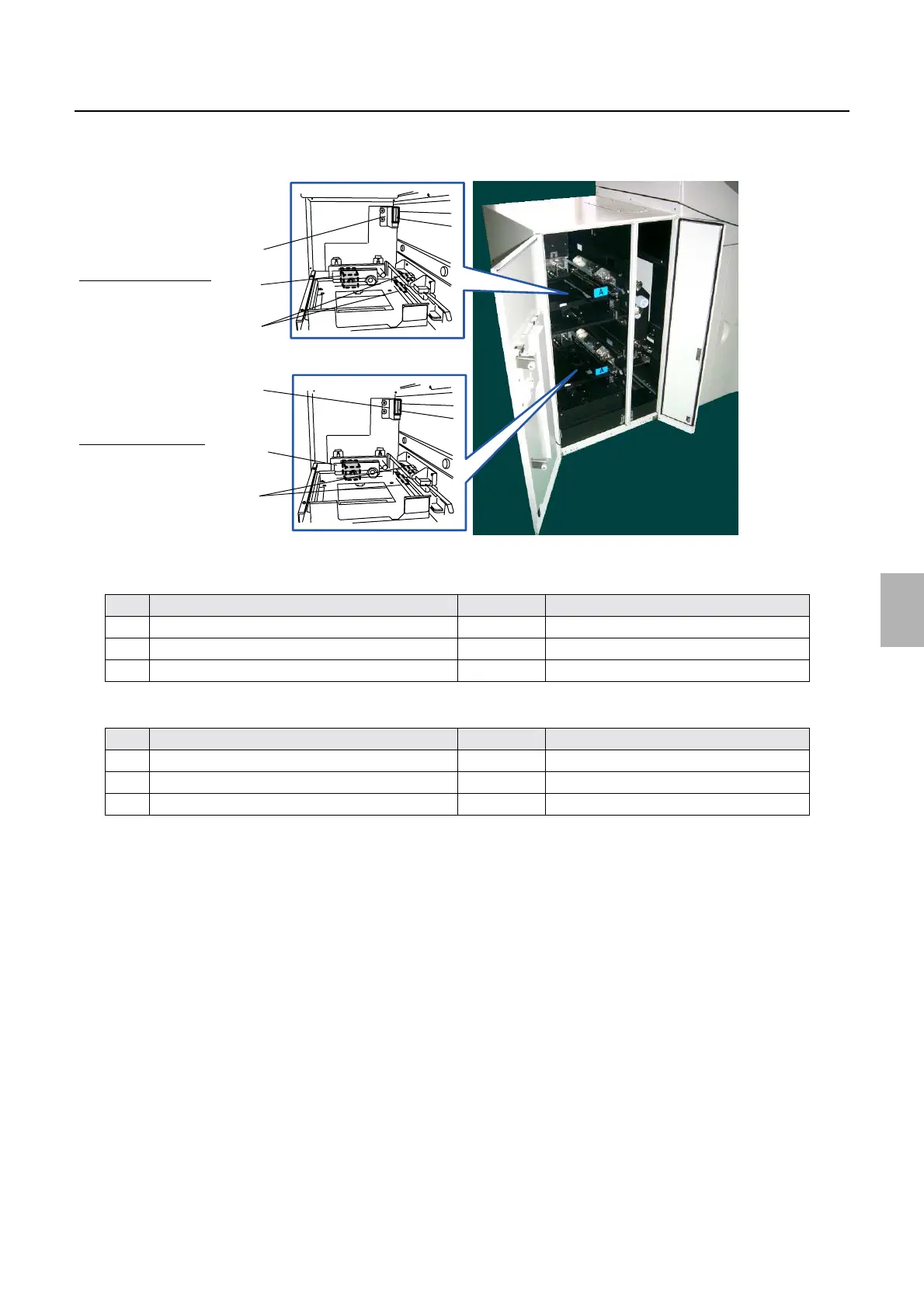

Position of electrical parts (printer section)
!
!!
! Layout diagram (quad magazine unit)
Paper magazine mount A
Paper magazine mount A2
No. Name Symbol Remarks
7 Paper Magazine Motor A PM3
8 Paper magazine code sensor A SE3
9 Paper End Sensor A SE6
No. Name Symbol Remarks
10 Paper Magazine Motor A2 PM22
11 paper magazine code sensor A2 SE28
12 Paper End Sensor A2 SE29
7
12
10
9
8
11
Paper magazine mount A2
Paper magazine mount A
G086494
