Positions of PCBs and electrical parts (dryer section, conveyor and order classification section)
1/2
6. Electrical parts
63270-5
63270-5
Dryer section (positions of electrical parts) (QSS-
3704/3705/LP7700/LP7900)
This item varies depending on the model. See the references below.
!
!!

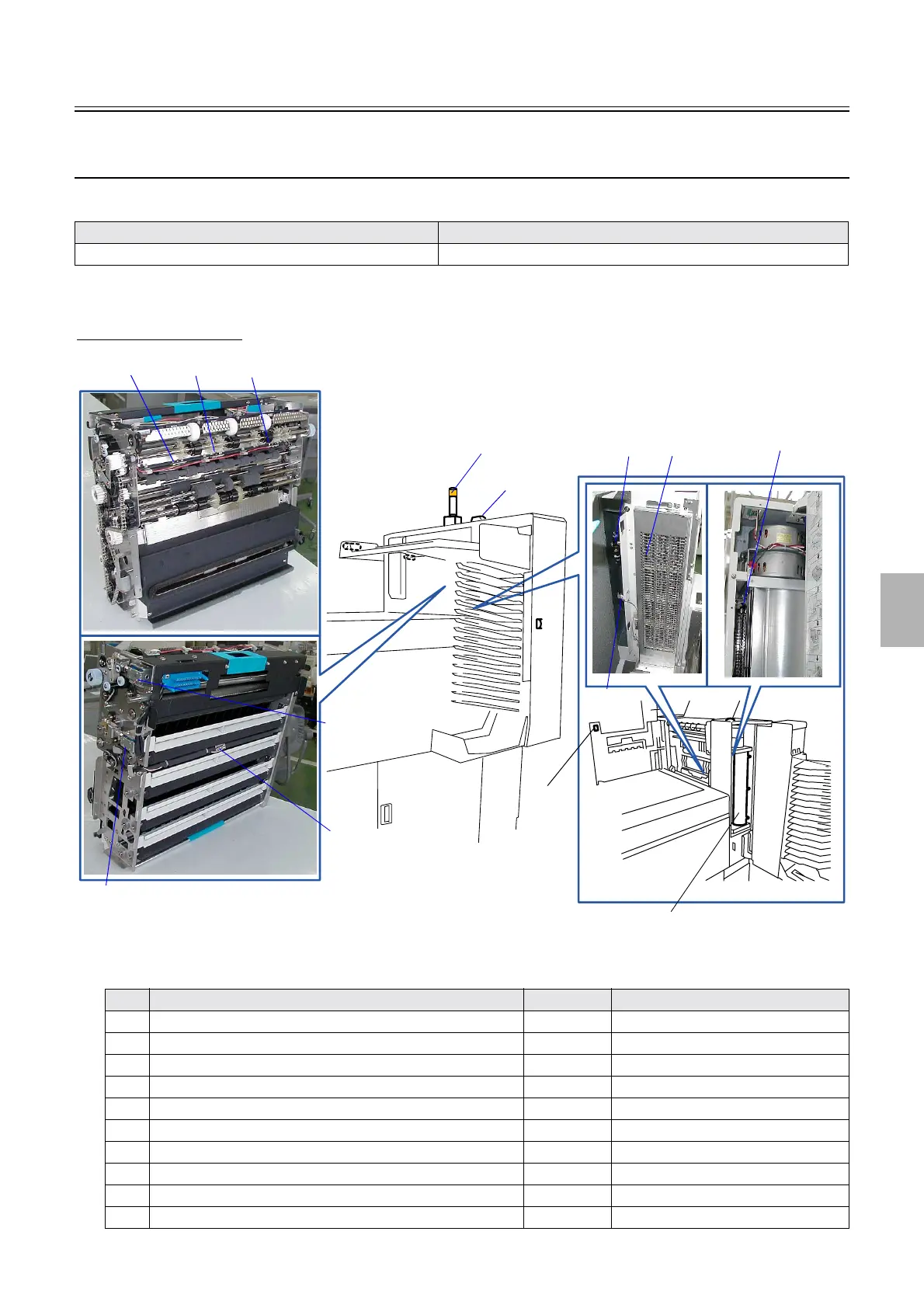

! Layout diagram (dryer section)
Dryer section (electrical parts)
Model Reference
QSS-3701/3702/3703/LP7500/LP7600 ☞63260
No. Name Symbol Remarks
1 Print sensor (right) SE28
2 Print sensor (center) SE29
3 Print sensor (left) SE30
4 Dryer selection solenoid 1 SOL16
5 Dryer selection solenoid 2 SOL17
6 Dryer lane select sensor SE45
7 Dryer safety thermostat STH3
8 Dryer thermosensor TH4
9 Interlock switch (dryer cover) LS5
10 Dryer fan FAN15
4
12
3
9
5
6
7
8
10
11
12
13
14
QSS-3704/3705/LP7700/LP7900
G085376
