Hard disk drive (HDD) / solid state drive (SSD)

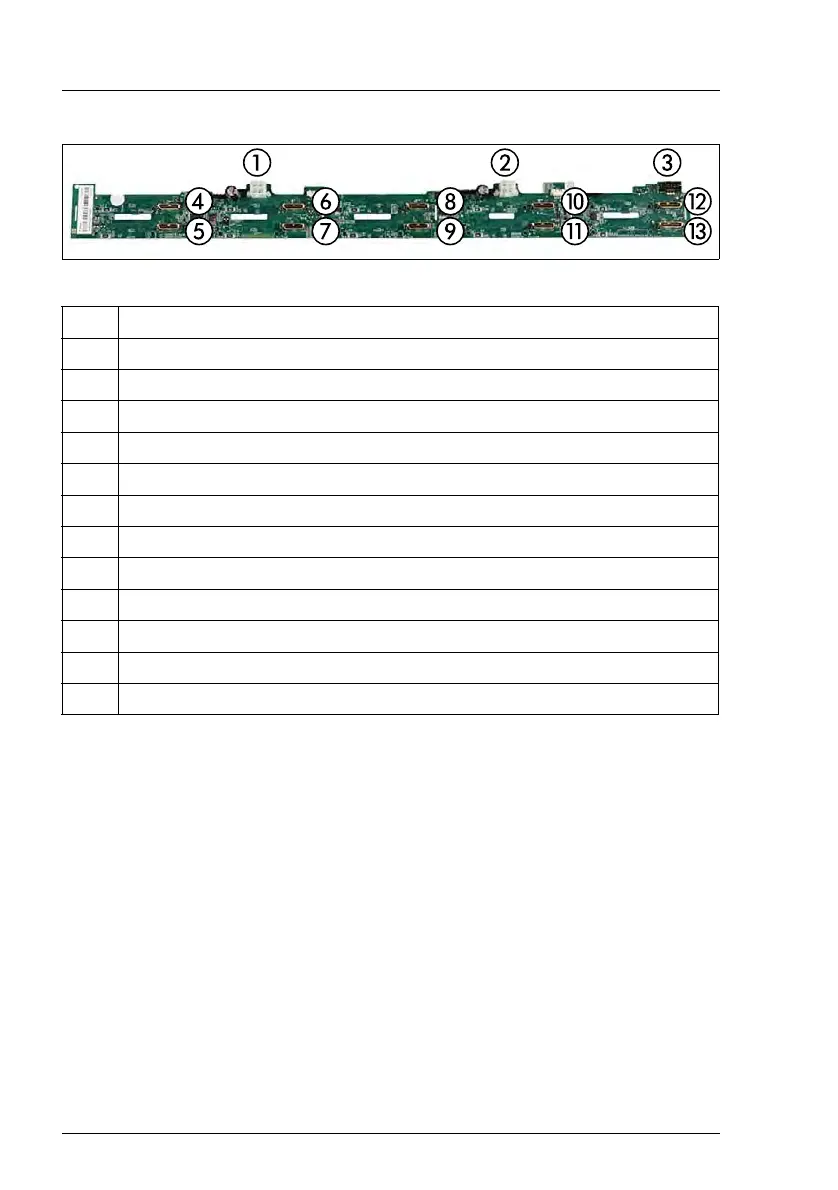

Figure 90: 10x 2.5-inch HDD backplane with 10x Oculink connectors (NVME)
1 Power connector
2 Power connector
3 Connector for OOB cable
4 Connector for Oculink cable (red) - onboard
5 Connector for Oculink cable (yellow) -onboard
6 Connector for Oculink cable (green) - second Retimer controller
7 Connector for Oculink cable (black) - second Retimer controller
8 Connector for Oculink cable (red) - second Retimer controller
9 Connector for Oculink cable (yellow) -second Retimer controller
10 Connector for Oculink cable (green) - first Retimer controller
11 Connector for Oculink cable (black) - first Retimer controller
12 Connector for Oculink cable (red) - first Retimer controller
13 Connector for Oculink cable (yellow) -first Retimer controller
