290 Upgrade and Maintenance Manual RX2530 M4

Processor (CPU)

Heat sink washers

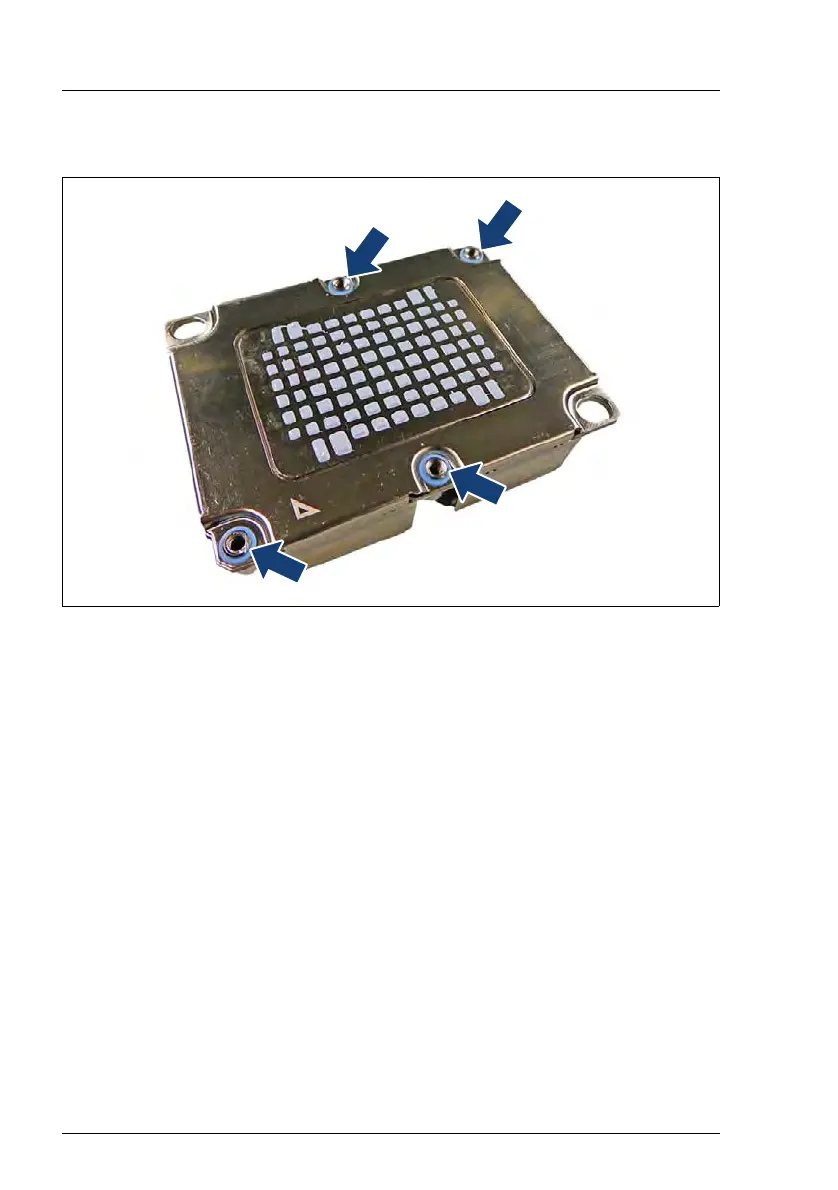

Figure 197: Heat sink with blue washers

Ê Always check, if the blue washers are in place.
