314 Upgrade and Maintenance Manual RX2530 M4

Liquid cooling (LC)

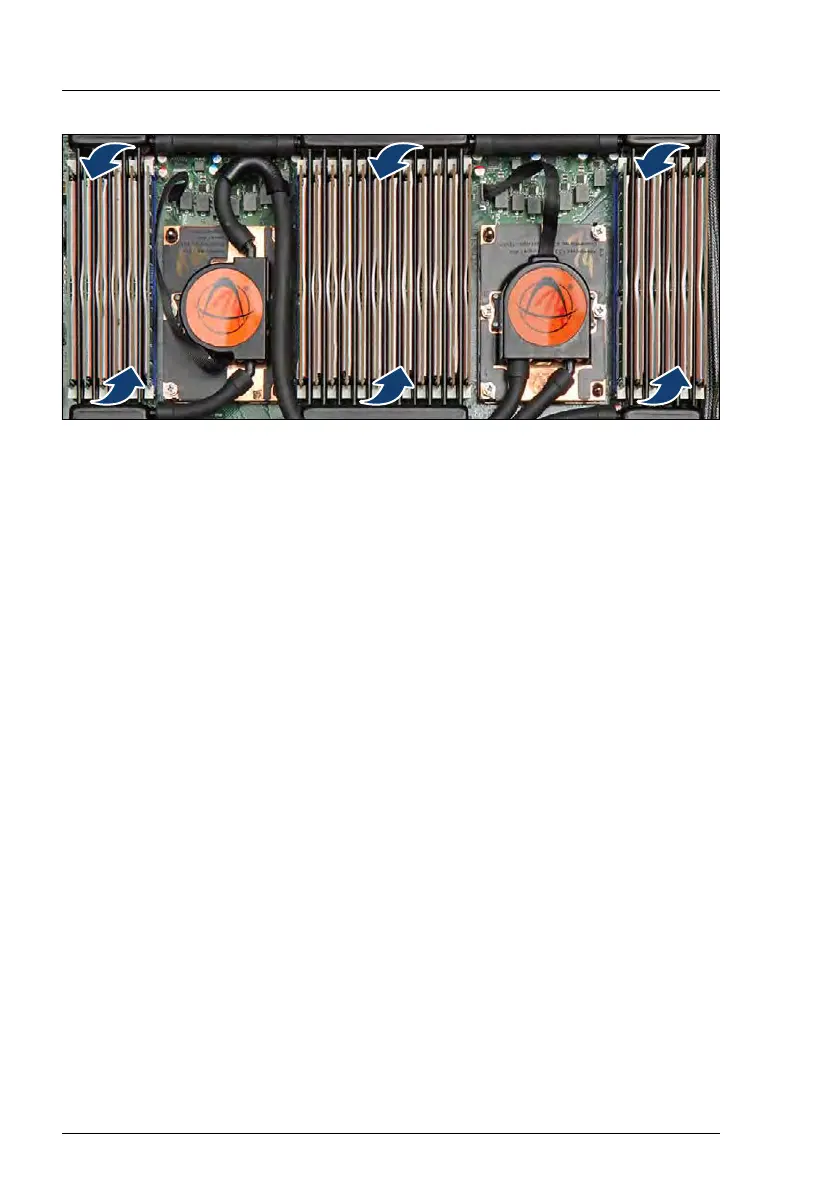

Figure 222: Removing the LC device

Ê Carefully lift up the three memory cooling units (see arrows).

Ê Hold the LC device with both hands and lift up the complete LC device

together with the CPUs.
