RX2530 M4 Upgrade and Maintenance Manual 321
Ê Connect the two control cables from the LC device to the system board, see
figure 211 on page 306:
– Pump 1 to connector LC1
– Pump 2 to connector LC2
Ê Install the slot bracket with the tubes in riser module 2, see section "Installing
an expansion card" on page 221.

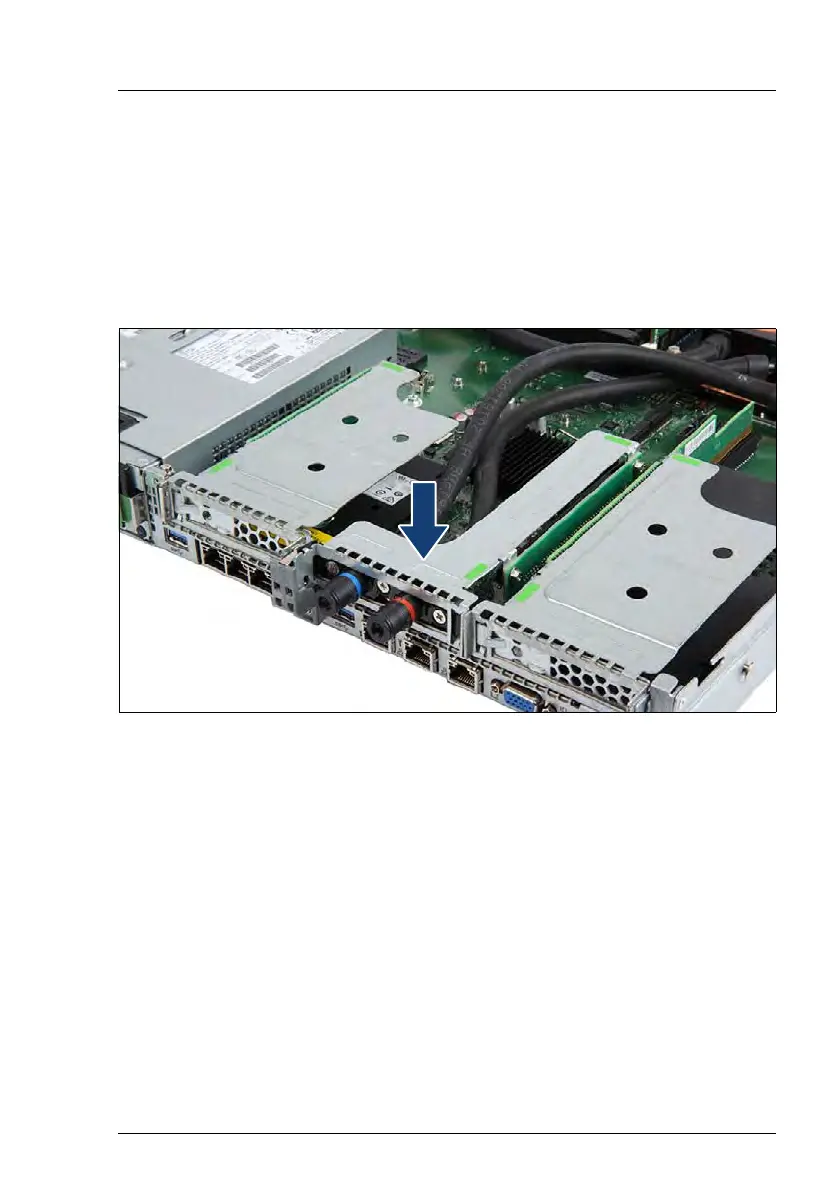

Figure 230: Installing the riser module 2 with the tubes
Ê Install the riser module 2, see section "Installing a riser module" on page 68.
