RX2530 M4 Upgrade and Maintenance Manual 337
13.1.2.3 Installing the ODD
Ê If no ODD has been installed before:
Ê Remove the two screws and take the ODD latch from the fan bridge (see
figure 242).

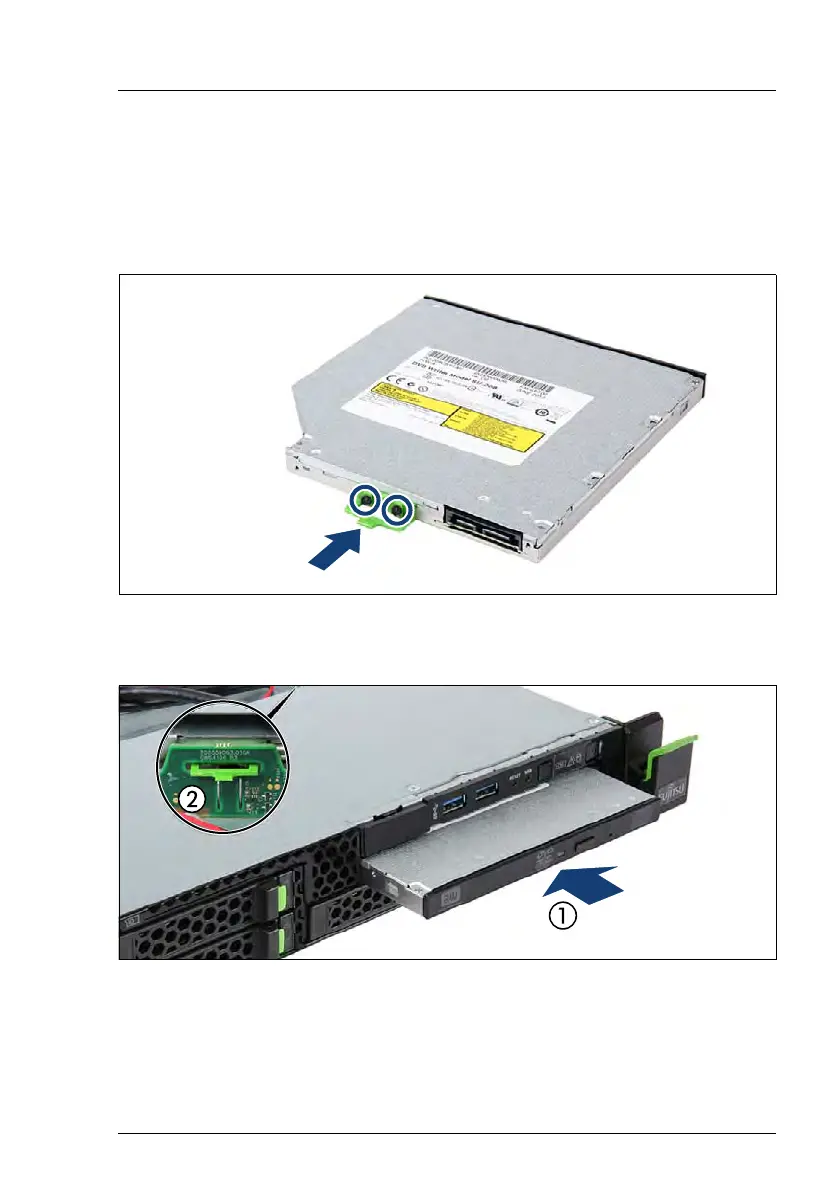

Figure 245: Installing the ODD latch on the ODD
Ê Fasten the ODD latch with two screws to the rear side of the ODD.
Figure 246: Installing the ODD
Ê Push the ODD into the bay (1) simultaneously pressing the front of the ODD
slightly down until the ODD latch engages (2).
