RX2530 M4 Upgrade and Maintenance Manual 395
System board and components
Ê "Connecting the power cord" on page 63
Ê "Switching on the server" on page 66
16.6.3 Replacing the Dual microSD 64GB Enterprise
16.6.3.1 Preliminary steps
Ê "Locating the defective server" on page 47
Ê "Shutting down the server" on page 49
Ê "Disconnecting the power cord" on page 50
Ê "Getting access to the component" on page 52
Ê "Removing the air duct" on page 73
16.6.3.2 Replacing the Dual microSD 64GB Enterprise
Ê Remove the defective Dual microSD 64GB Enterprise, see section
"Removing the Dual microSD 64GB Enterprise" on page 394.
Ê Remove both microSD cards from the defective Dual microSD 64GB
Enterprise. Proceed as described in the following:

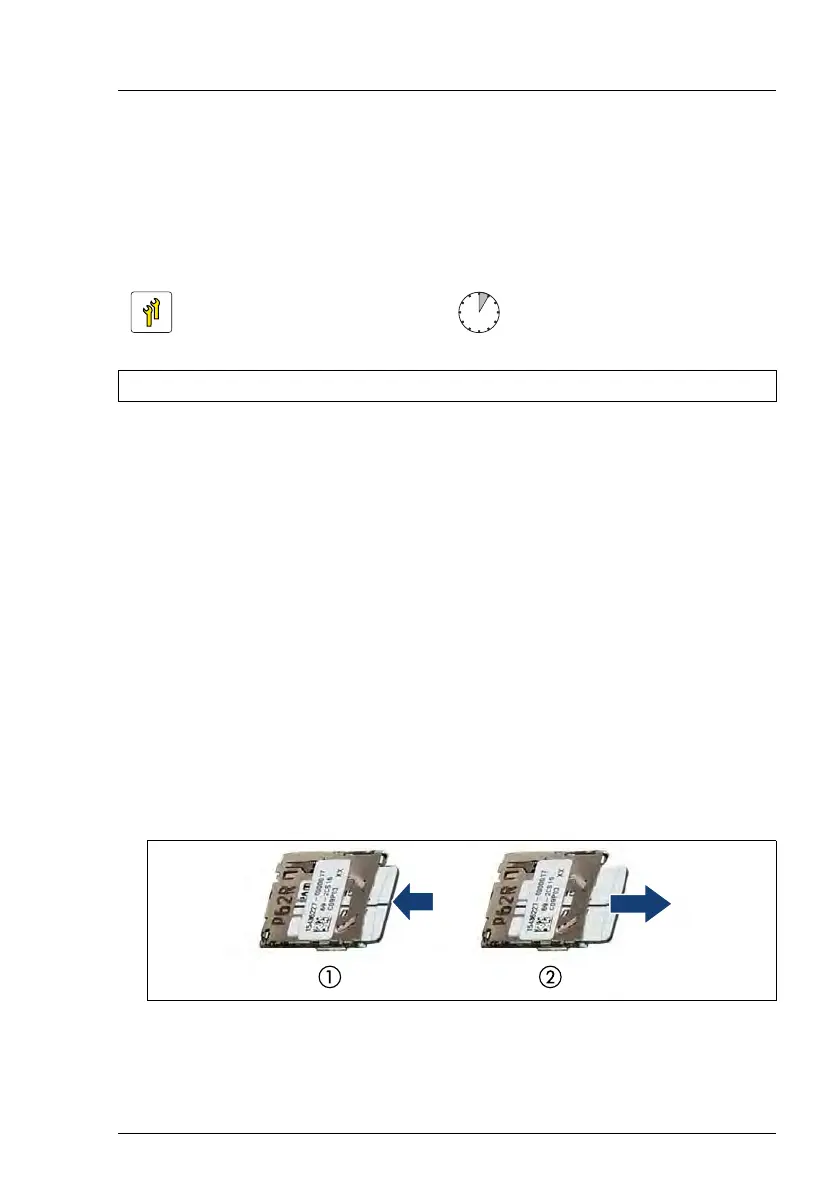

Figure 298: Removing the microSD card
Ê To eject the microSD card, gently push it in and then let go (1).
Ê Pull the microSD card straight out of its slot (2).
Upgrade and Repair Unit
(URU)
Hardware: 5 minutes
Tools: tool-less
