396 Upgrade and Maintenance Manual RX2530 M4
System board and components
Ê Install both microSD cards on the new Dual microSD 64GB Enterprise.
Proceed as described in the following:

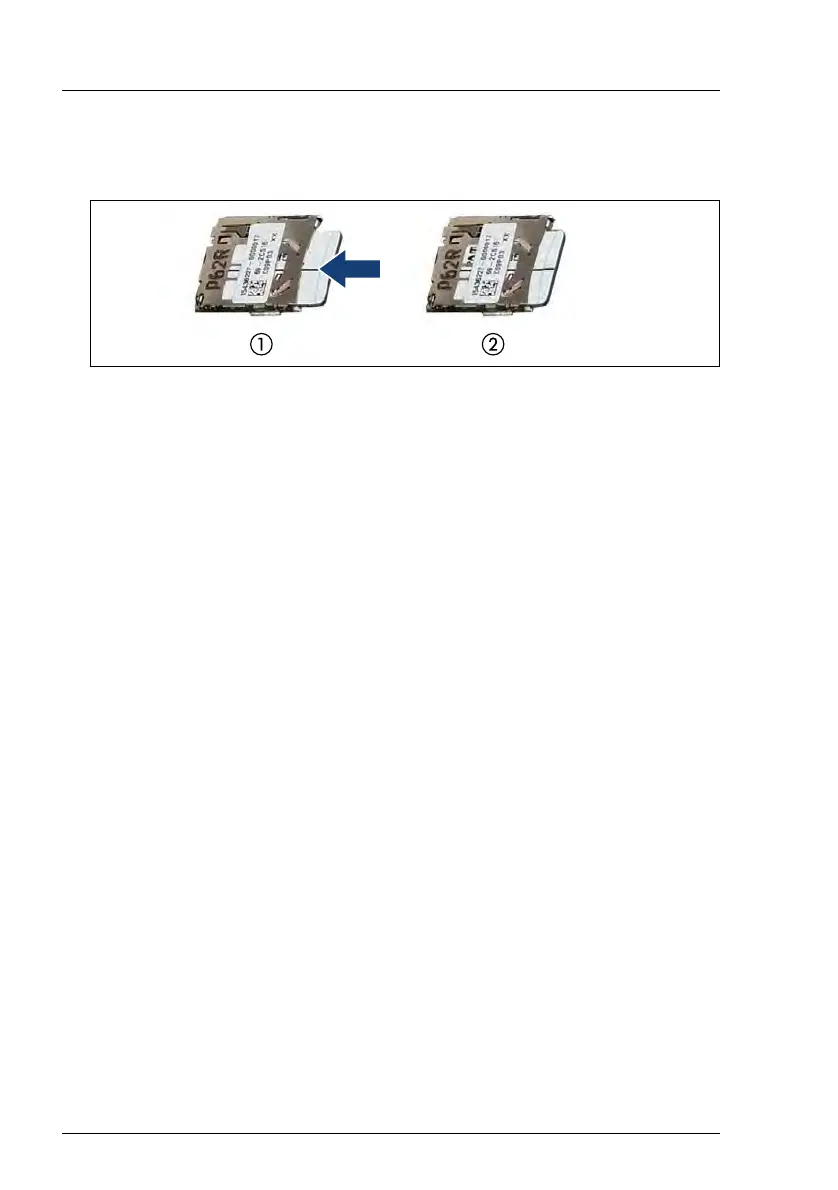

Figure 299: Installing the microSD card
Ê With the label facing up, insert the microSD card into the microSD slot on
the controller (1) until it locks in place (2).
Ê Install the new Dual microSD 64GB Enterprise, see section "Installing the
Dual microSD 64GB Enterprise" on page 390.
16.6.3.3 Concluding steps
Ê "Installing the air duct" on page 74
Ê "Reassembling" on page 57
Ê "Connecting the power cord" on page 63
Ê "Switching on the server" on page 66
Ê Rebuild will start automatically, see section "Performing a RAID array
rebuild" on page 99.
16.6.3.4 Software configuration
I To install the ESXi to the Dual microSD 64GB Enterprise, see section
"Software configuration" on page 393.
