RX2530 M4 Upgrade and Maintenance Manual 75
Basic hardware procedures
Note for configuration with two Retimer controllers
In this configuration there are many Oculink cables. To avoid damaging the
cables when closing the server, it is recommended to route the Oculink cables
as shown in the following photos.

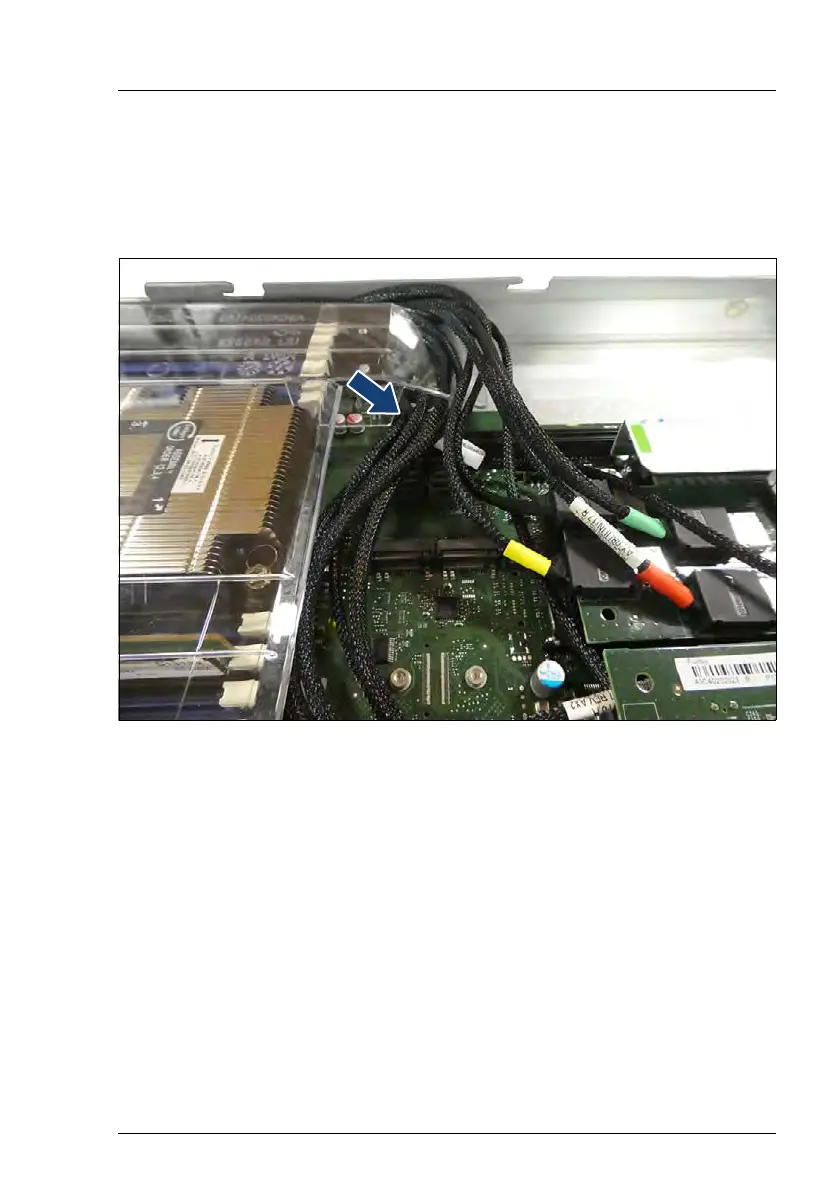

Figure 30: Routing Oculink cables underneath the air duct
Ê Route the Oculink cable of the Retimer controller installed in riser module 3
and the Oculink cables of the onboard connection underneath the air duct.
