76 Upgrade and Maintenance Manual RX2530 M4

Basic hardware procedures

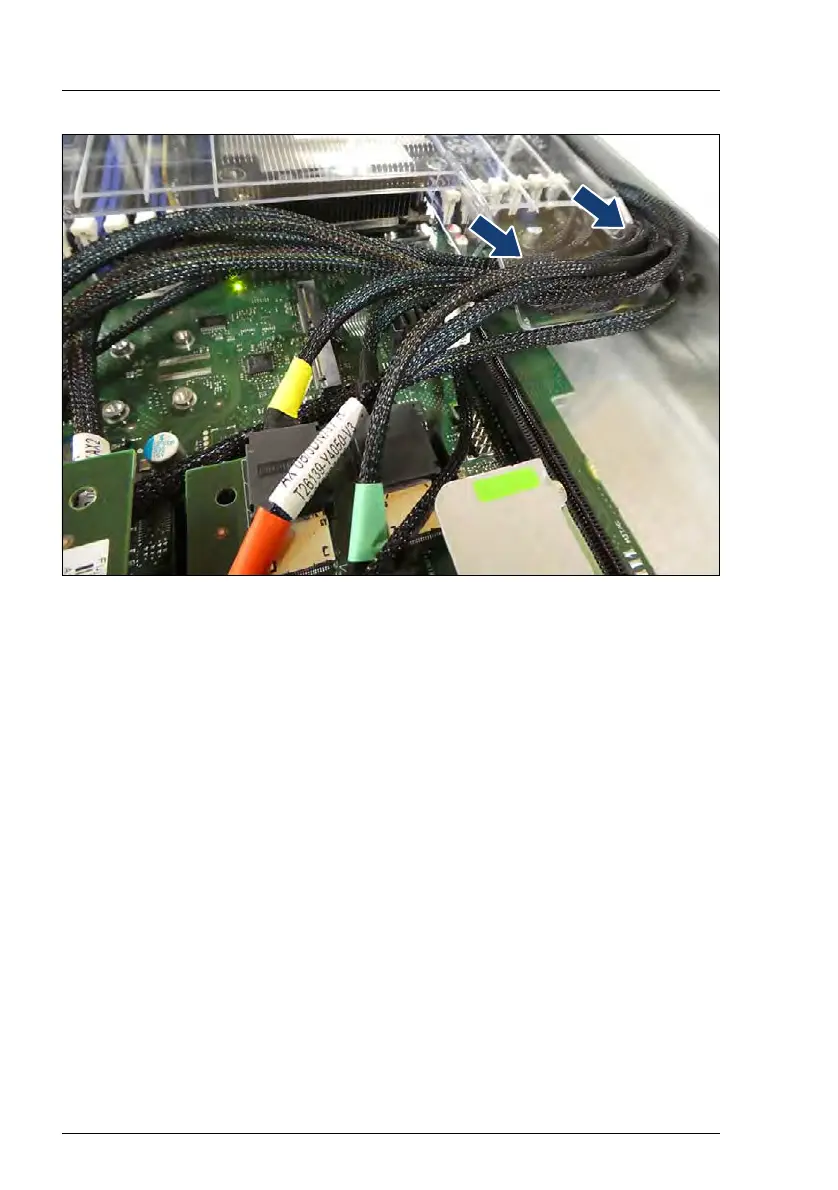

Figure 31: Routing Oculink cables above the air duct

Ê Route the Oculink cable of the Retimer controller installed in riser module 2

above the air duct.
