MANUAL ON MODE
ON Mode can be selected at any time by selecting the ON Button. ON Mode generates Mode A and Mode S
replies (ADSB-OUT), but Mode C altitude reporting is inhibited. In ON Mode, a green ON indication and
transponder code appear in the Transponder Mode Button.
ON Mode (No
Altitude Reporting)

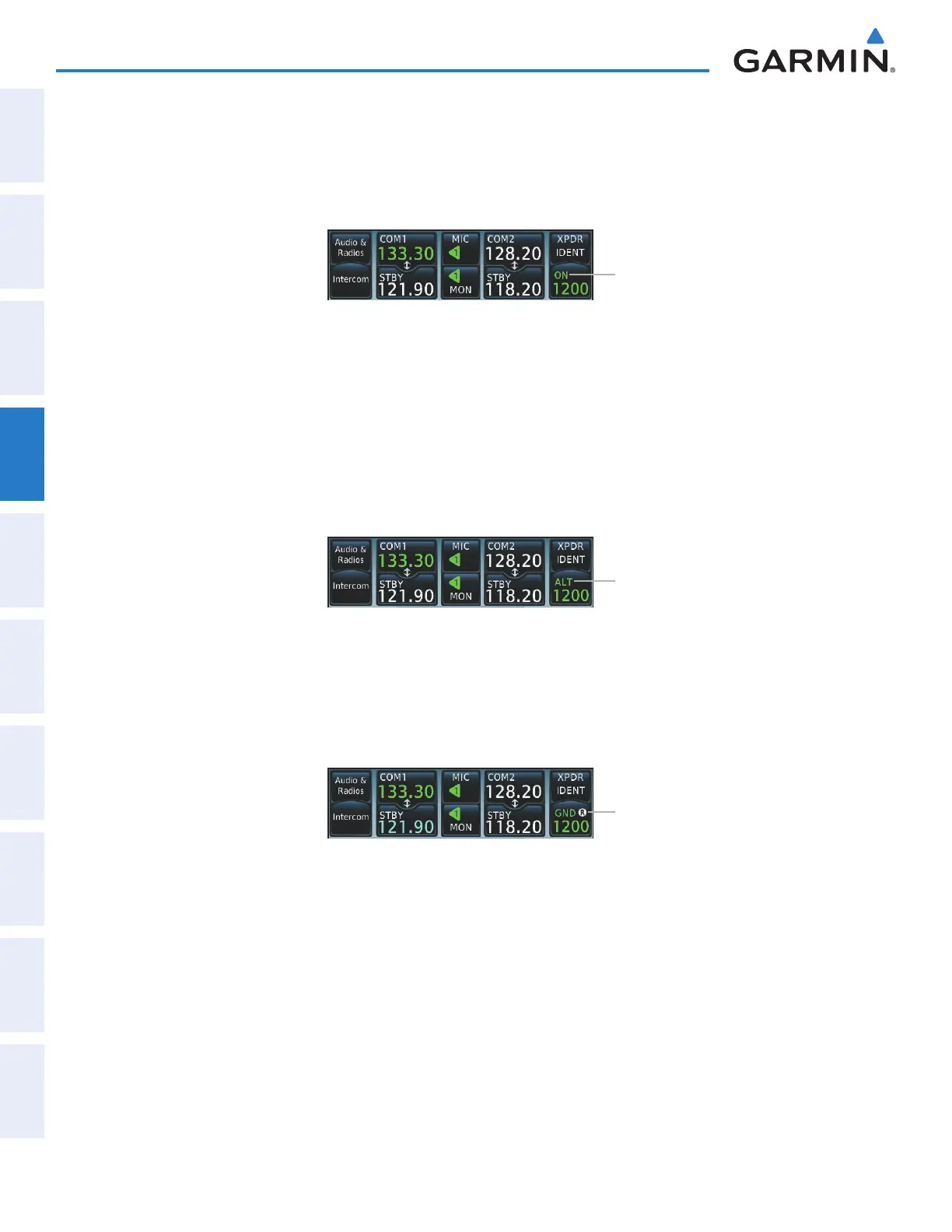

Figure 4-40 On Mode
ALTITUDE REPORTING MODE (AUTOMATIC OR MANUAL)
Altitude Reporting Mode is automatically selected when the aircraft becomes airborne. Altitude Reporting
Mode may also be selected manually by selecting the
Altitude Reporting
Button.
If Altitude Mode is selected, a green ALT indication and transponder code appear in the Transponder
Mode Button, and all transponder replies requesting altitude information are provided with pressure altitude
information (ADSB-OUT).
Altitude Reporting Mode
(Mode C Altitude Reporting)
Figure 4-41 Altitude Reporting Mode
REPLY STATUS
When the transponder sends replies to interrogations, a white R indication appears momentarily in the
Transponder Mode Button.
Reply to Interrogation
Figure 4-42 Altitude Reporting Mode
AIRCRAFT IDENTIFICATION (FLIGHT ID)
The Mode S Transponder reports the aircraft identification as the aircraft registration number. The Flight
ID can not be changed by the pilot.
