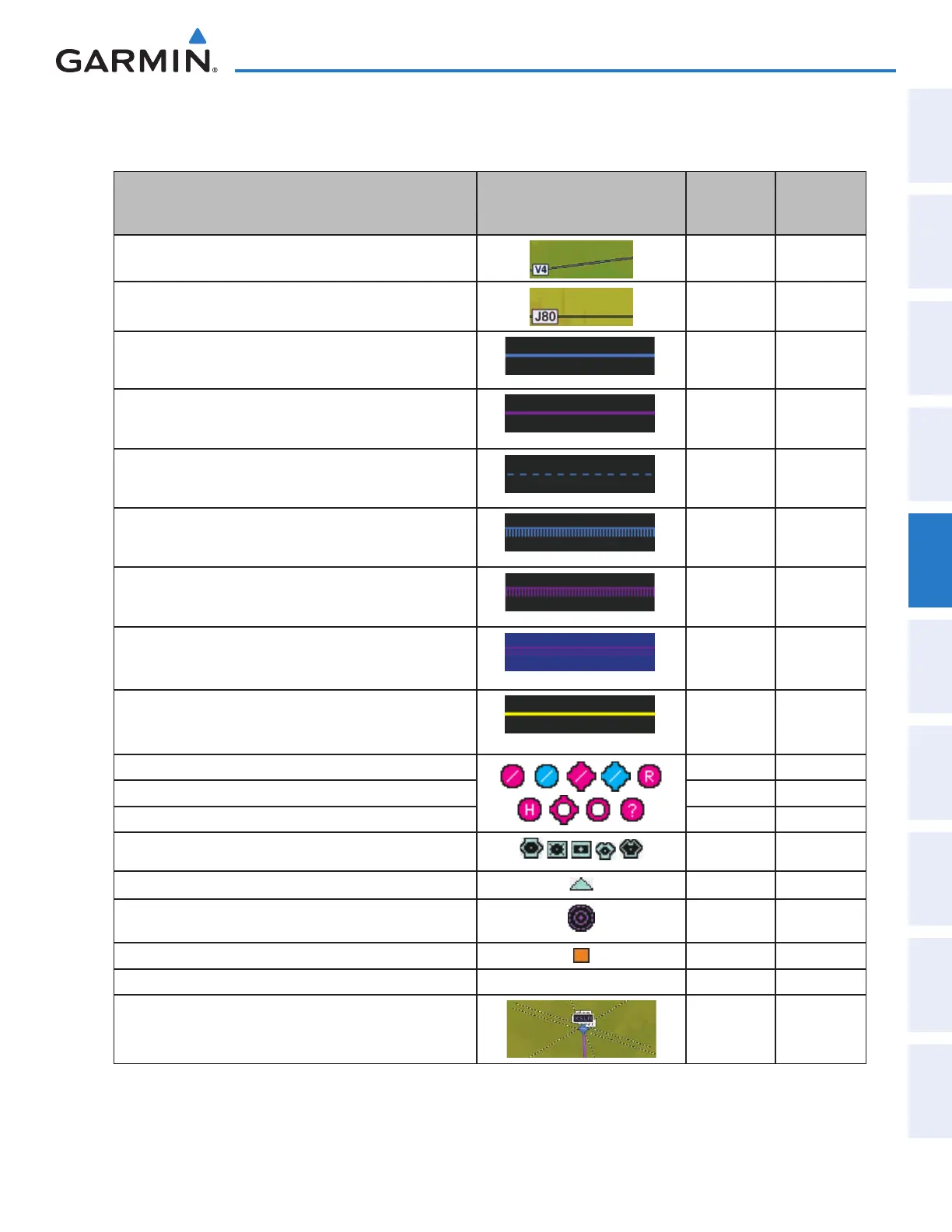

AVIATION SYMBOLS
The following items are configured on the Aviation Tab of the Map Options Screen:
Aviation Symbols
(Text label size can be None, Small, Medium, or
Large)
Symbol Default
Range (nm)
Maximum
Range (nm)
Low Altitude Airways
50 75
High Altitude Airways
50 75
Class B/TMA
50 250
Class C/TCA)
50 75
Class D
10 25
Restricted
50 75
MOA (Millitary)
50 75
Other/ADIZ
50 75
TFR
250 1000
Large Airport
100 250
Medium Airport 50 75
Small Airport 25 25
VOR Waypoint
50 75
INT Waypoint
25 25
NDB Waypoint
25 25
User Waypoint
25 250
SafeTaxi See Additional Features 1.5 25
Runway Extension
7.5 25
Table 5-2 Aviation Symbol Information
