d) Note in Figure 5-171, the magenta arrow in the flight plan window and magenta line on the map indicating V4
is now the active flight plan leg. Note the phase of flight remained in Terminal (TERM) mode up to this point
because a departure leg was active. Since a leg after the departure is now active, the current CDI flight phase is
ENR (Enroute) and CDI scaling has changed to 2.0 nm.

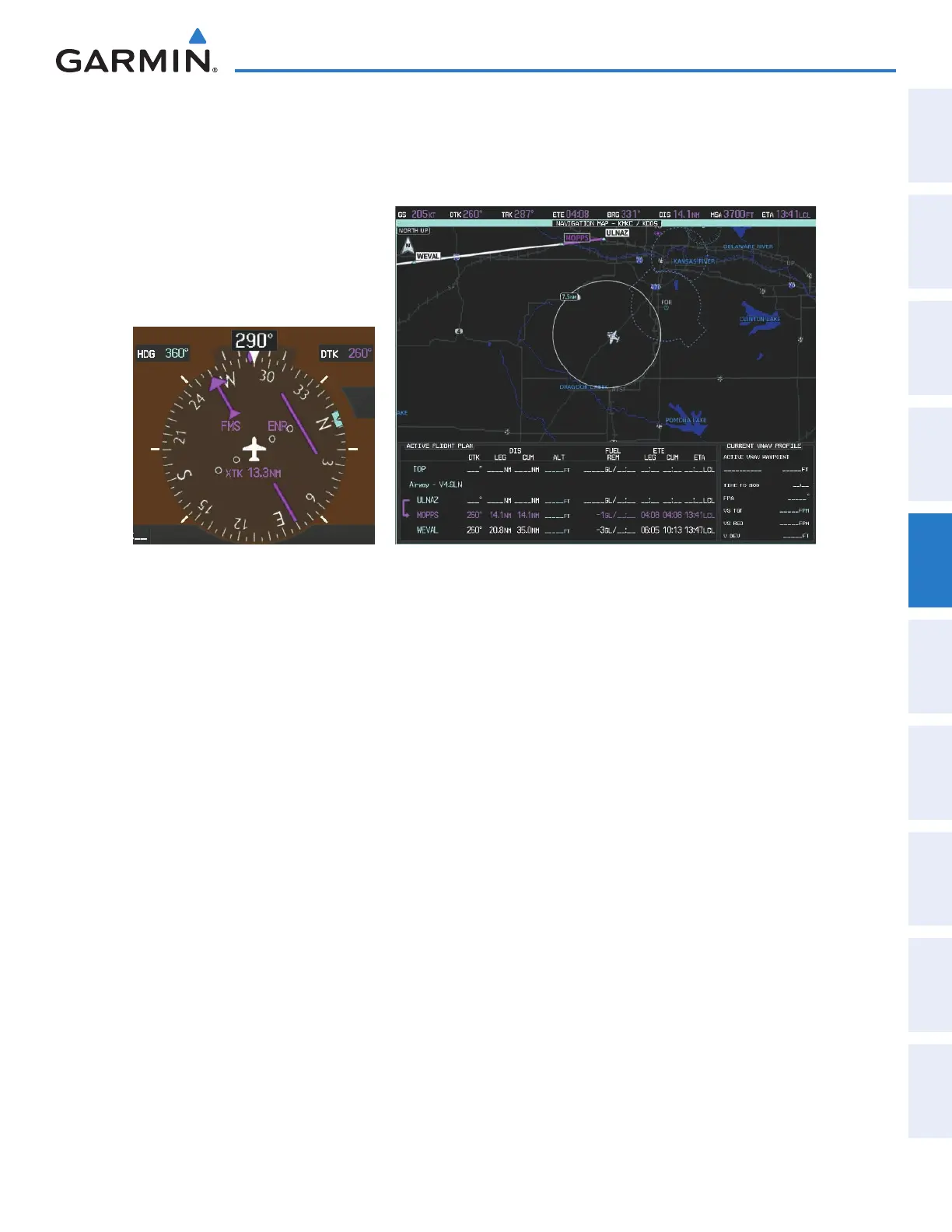

Figure 5-171 V4 Now Active Leg
6) The aircraft continues on heading 290º. When crosstrack distance is less than 2.0 nm, the XTK disappears from
the HSI and the CDI is positioned on the last dot indicating a 2.0 nm distance from the centerline of the next
course.
