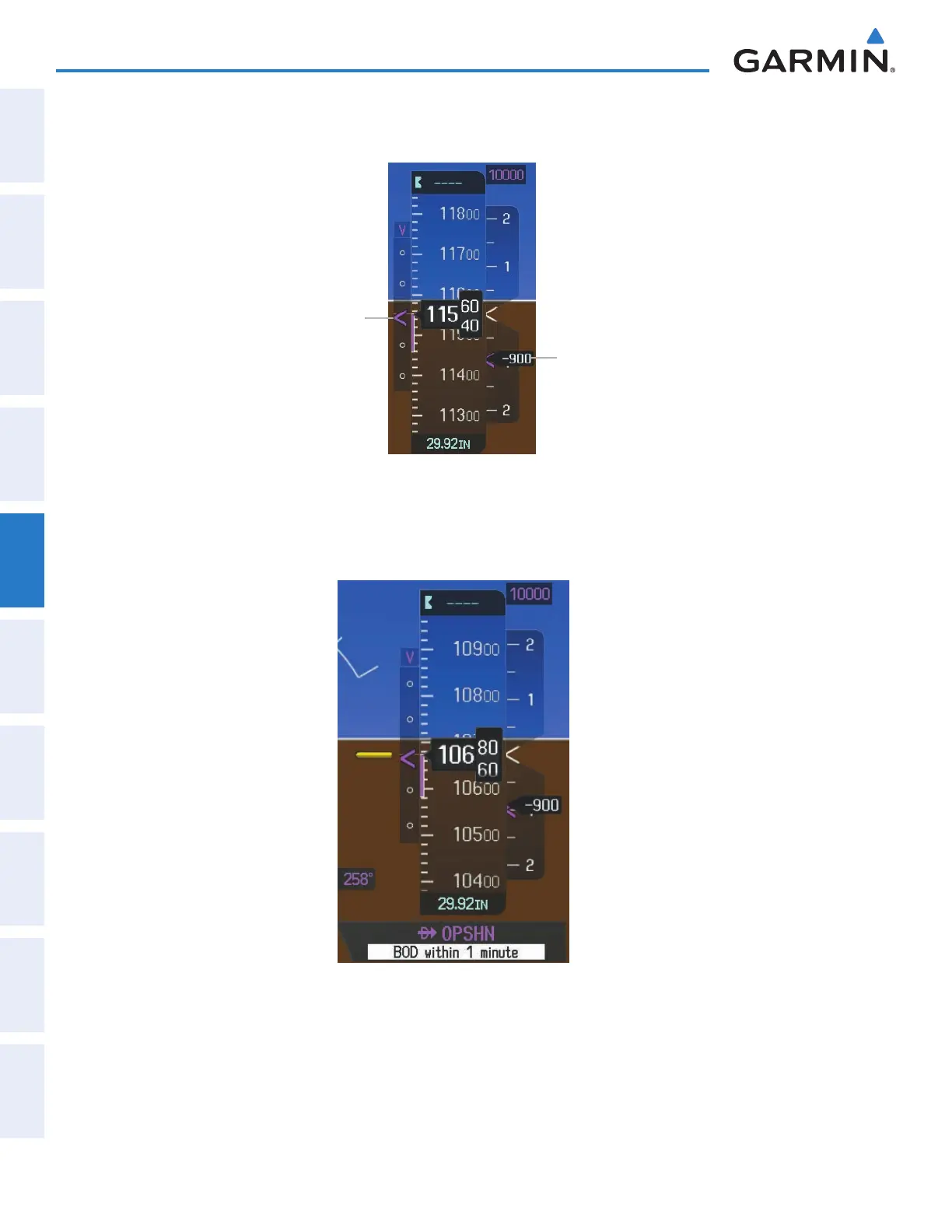

16) Upon reaching TOD, a descent vertical speed is established by placing the VSI pointer in line with the RVSI as
shown in Figure 5-195 .
Figure 5-195 VDI & RVSI Showing Correctly Established Descent
Align Actual Vertical Speed
with
Required Vertical Speed
Keep Vertical Deviation
Indicator Centered
17) When the aircraft is one minute from the bottom of descent (BOD) it is annunciated as shown in Figure 5-196.
Upon reaching the offset waypoint for OPSHN, the aircraft is at 10,000 feet.
Figure 5-196 Approaching Bottom of Descent (BOD) at OPSHN Offset Waypoint
