190-01263-01 Rev. A
Garmin G2000 Pilot’s Guide for the Cessna T240
323
Flight ManageMent
SYSteM
OVeRVieW
Flight
inStRUMentS
eiS
aUDiO Panel
& CnS
Flight
ManageMent
haZaRD
aVOiDanCe
aFCS
aDDitiOnal
FeatUReS
aPPenDiCeS inDeX

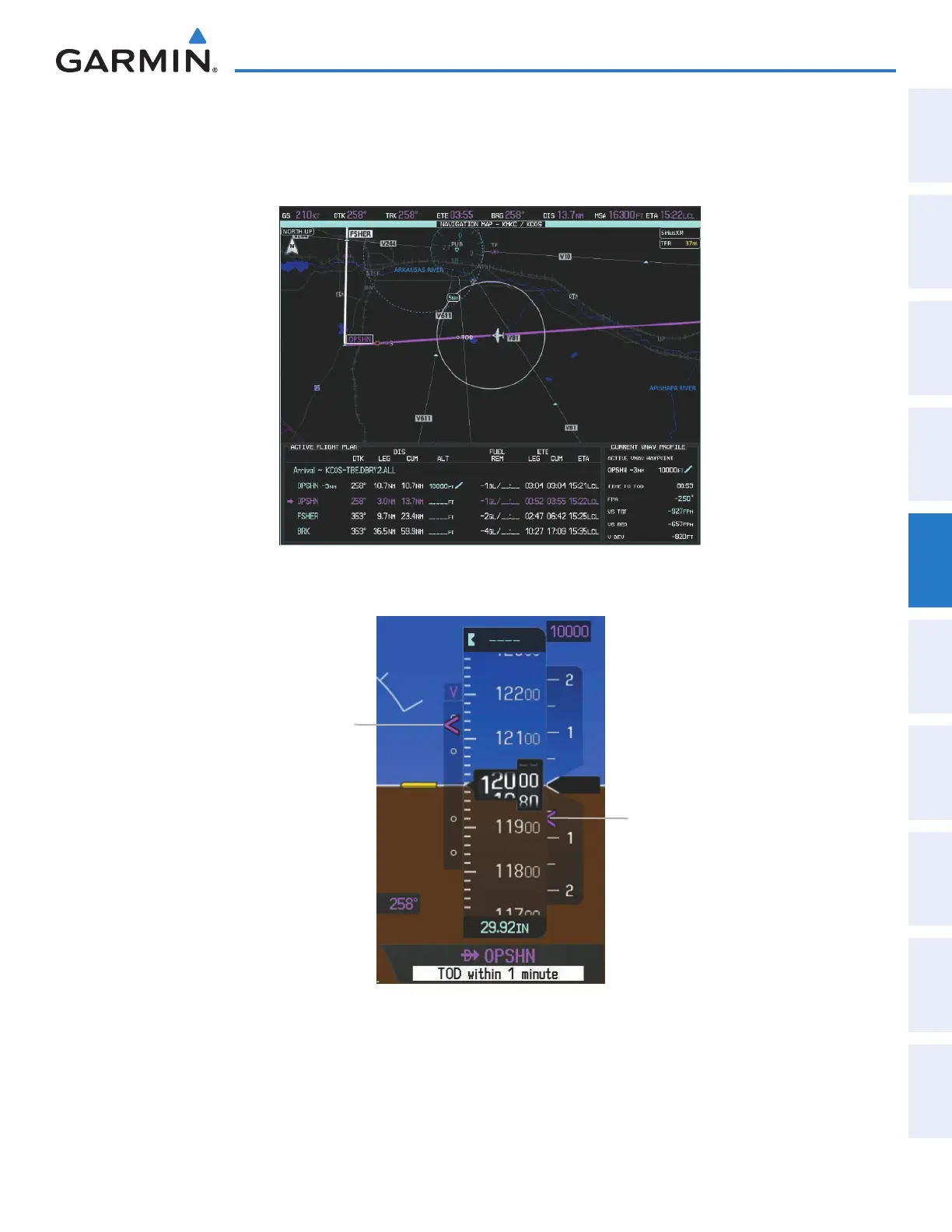

15) As seen in Figure 5-193, the aircraft is approaching TOD. Note the target vertical speed required to reach the
selected altitude. The Vertical Deviation Indicator (VDI) and the Required Vertical Speed Indicator (RVSI) are
now displayed on the PFD as shown in Figure 5-194. When the aircraft is within one minute of the TOD, it is
annunciated as shown in Figure 5-194, and an aural alert ‘Vertical track’ will be heard.
Figure 5-193 Approaching Top of Descent (TOD)
Required Vertical
Speed Indicator
(RVSI)
Vertical Deviation
Indicator (VDI)
Figure 5-194 VDI & RVSI Upon Reaching Top of Descent (TOD)
