3) Press the SiriusXM Lightning Softkey to enable/disable display lightning information.
4) Press the Back Softkey to return to the top-level softkeys.
STORM CELL MOVEMENT

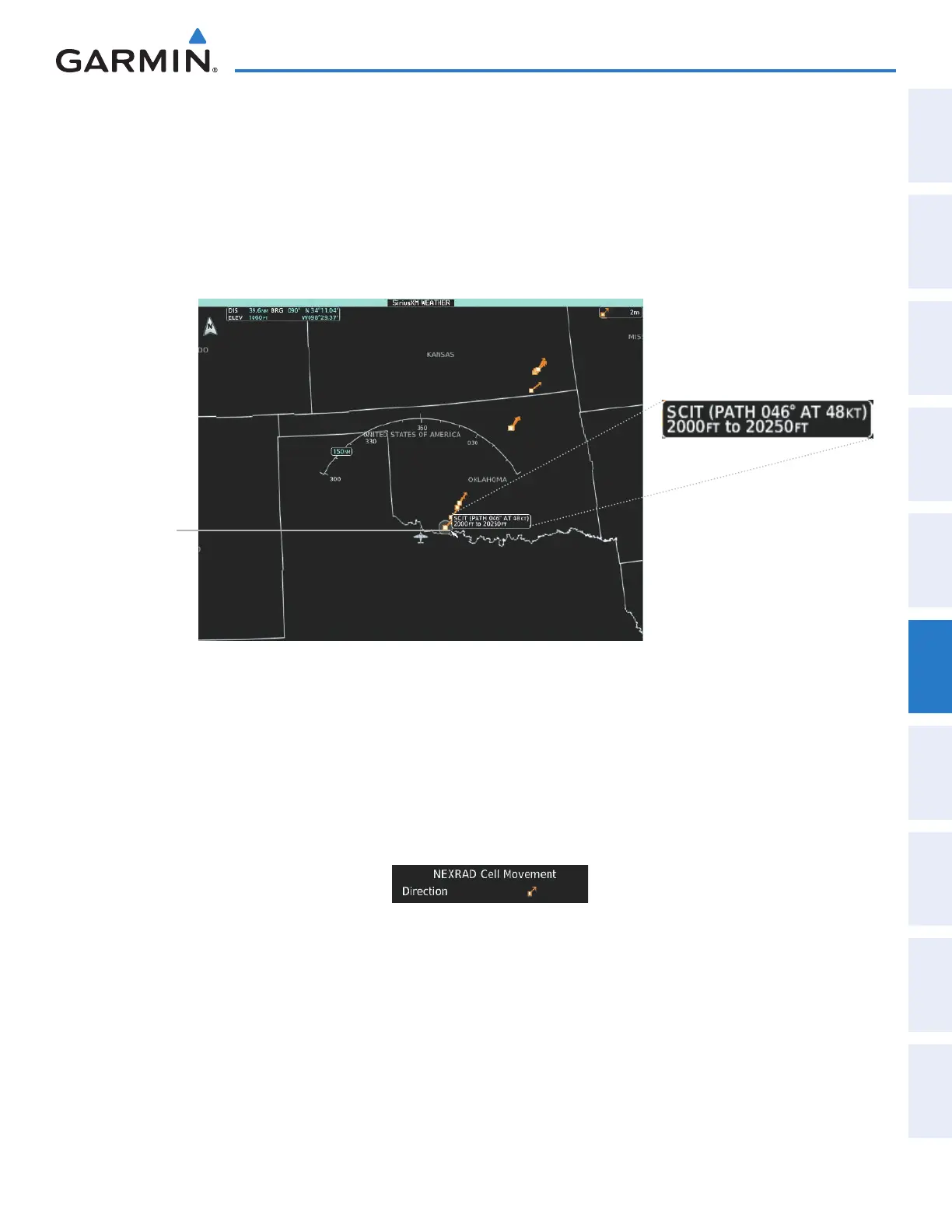

The Cell Movement map overlay (Figure 6-13) shows the location and movement of storm cells as identifi ed
by the ground-based system. Yellow squares represent cells, with short orange arrows indicating direction of
cell movement.
Figure 6-13 Storm Cell Movement Weather Product
Storm Cells
Selected
with Map
Pointer
Additional Information for Selected
Storm Cell
Enabling/Disabling Storm Cell Movement Information SiriusXM Weather Pane)
1) From Home, touch Weather > Weather Selection > SiriusXM Weather > SiriusXM Settings.
2) Touch the Storm Cell Movement Button in the Overlays window.
Touch the Legend Button on the SiriusXM Weather Settings Screen to display weather legend(s) for enabled
weather product(s). Scroll as necessary to view the information, then touch Back or Home.
Figure 6-14 Cell Movement Legend
Displaying Storm Cell Movement Information (Navigation Map Pane)
1) From Home, touch Map > Map Settings.
2) If necessary, touch the Sensor Tab.
3) Scroll as needed and touch the NEXRAD Data Settings Button.
