Headwind and tailwind components aloft are available inside the Profile View Inset Window on the
Navigation Map Pane (Figure 6-68). The displayed components are relative to current aircraft altitude and
track, but not to aircraft speed.
Winds Aloft
Product Age
Wind Component
Velocity and
Direction Arrows
Altitude
Scale
Distance Scale

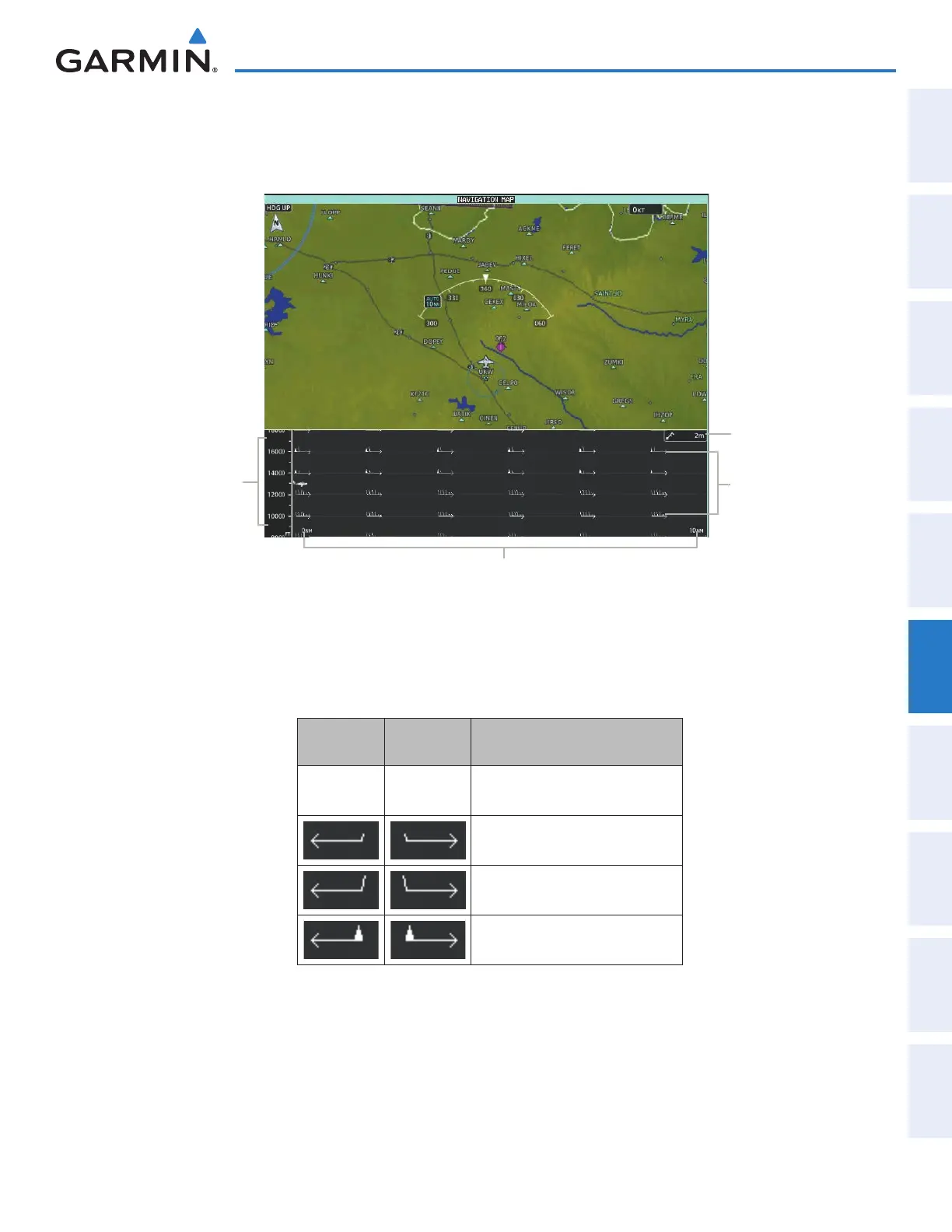

Figure 6-68 Profile View Inset Window with Winds Aloft Information
Arrows pointing to the left indicate headwind components; tailwind component arrows point to the right,
as shown in Table 6-8.
Headwind
Symbol
Tailwind
Symbol
Headwind/Tailwind
Component
None None Less than 5 knots
5 knots
10 knots
50 knots
Table 6-8 Profile View Headwind/Tailwind Component Symbols
