GE HEALTHCARE
DIRECTION 5394141, REVISION 5 LOGIQ™ P5 SEVICE MANUAL
8-24 Section 8-2 - DISASSEMBLY/RE-ASSEMBLY
8-2-6-4 Assembly procedure (cont’d)

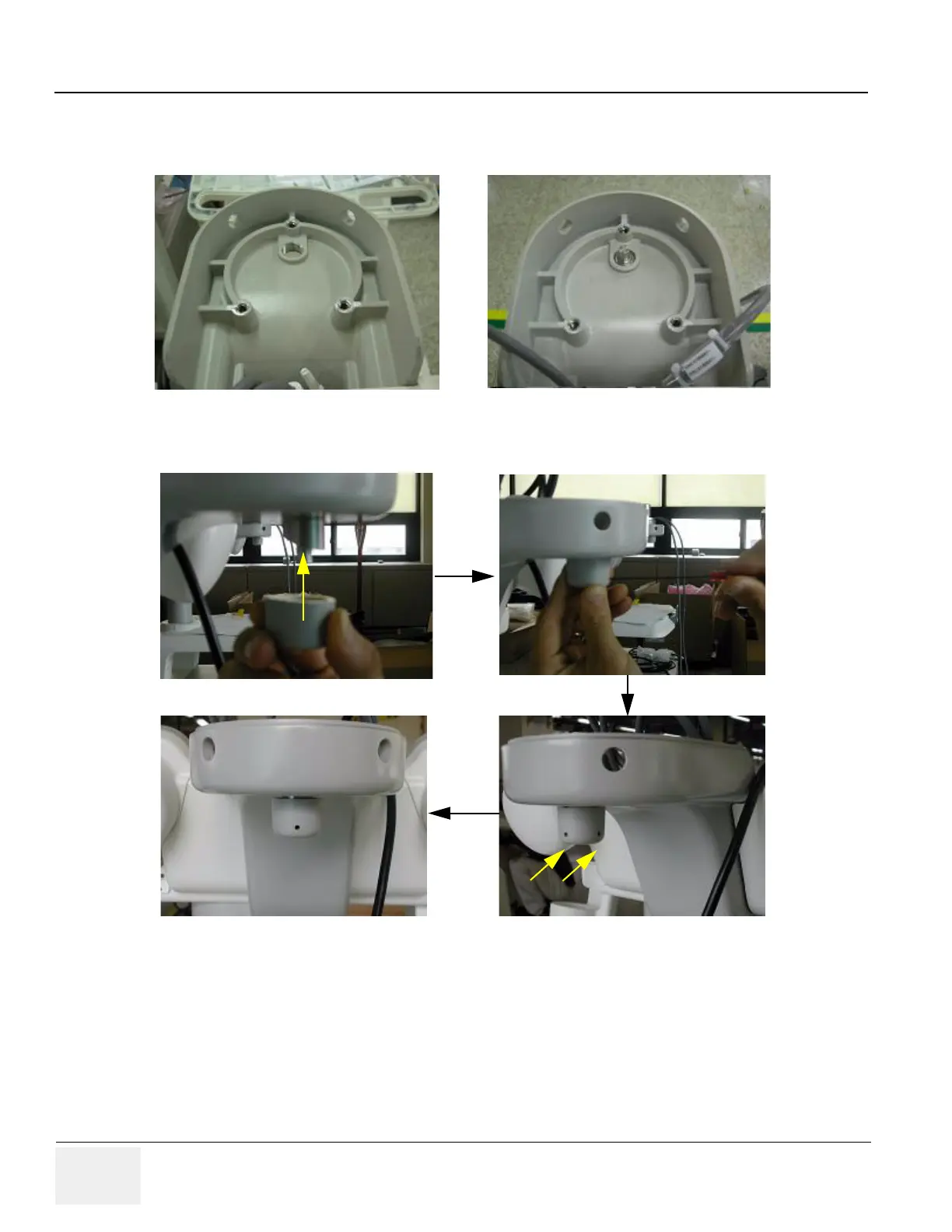

b-1) Mold die of AL neck frame modified as seen in the figure below does not need a nut.
c.) Insert holder grip as seen the picture below and fix it with 2set screws(2327580, M2.6X4).
Figure 8-38 Screwing the spring holder Assy
Figure 8-39 Assembling the holder grip
To Next Page
