3-7-4 Set Up Connection to a DICOM Server in a Network
NOTE: Typically, DICOM server (PACS) is configured as part of another dataflow
(for example, Local Archive - DICOM Server).
It is not advisable to use DICOM server as a live dataflow as no image will be saved to the Local HD.
DICOM Server may be configured and used to transfer a Study already saved to the Local HD.
This scenario requires that the scanner is configured to be connected to the DICOM server as described
below.
3-7-4-1 Overview
To work against the DICOM server, the following information has to be entered in the scanner:
• DICOM server IP address.
• DICOM server port number.
• DICOM server AE title (the server application’s name).
• Name of Device.
3-7-4-2 DICOM Server IP Address Setting on the Scanner
1.) Press CONFIG
(F2) and log on as Adm, as described in ‘Log On to the System as ADM” on page 4-
10.
2.) Select CONNECTIVITY
(in the lower part of the window).
3.) Select the DATAFLOW
tab.
4.) Select the arrow to the right of the Name field to list all dataflows in a pull-down menu, see
Figure 3-140.
5.) From the Dataflow Name pull-down list, select the dataflow you want to configure - see
Figure 3-140.

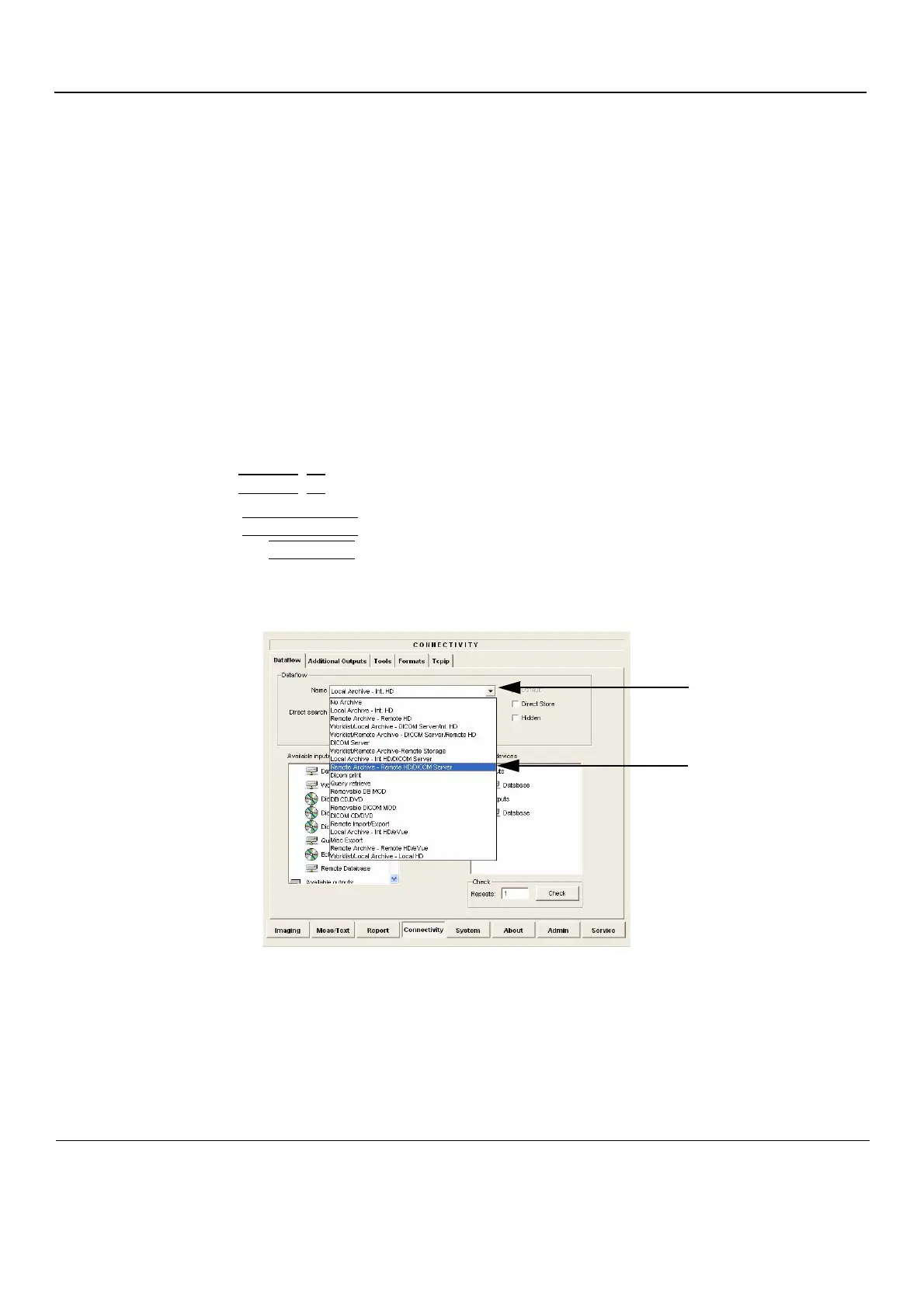

Figure 3-140 Select Dataflow
Arrow
Select dataflow from
Dataflow Name pull-down
menu.
