Section 8-9
Peripherals - Replacement Procedures
8-9-1 Wireless USB Network Adaptor Replacement Procedure
NOTE: This section describes removal and replacement procedures only.
For initial installation and configuration instructions, refer to the information provided in
Chapter 3 - System Setup. See “Wireless Network Adaptor” on page 3-66 and “Wireless Network
Configuration” on page 3-105.
8-9-1-1 Tools
None.
8-9-1-2 Time Required
Less than 1 minute
8-9-1-3 Preparation
Contact the local IT Manager to obtain all the security settings. These will be required when performing
the Wireless USB Network Adaptor Installation Procedure.
8-9-1-4 Wireless USB Network Adaptor Removal Procedure
1.) Disconnect the USB connector from the USB port at the rear of the scanner, as indicated in
Figure 8-268 on page 8-235
2.) Carefully remove the Wireless USB Network Adaptor from the system.
NOTE: Since the adaptor is secured to the scanner rear panel with velcro tape, it is only necessary to
carefully pull the adaptor (together with the attached cable - see Figure 8-268) towards you to
release if from the system.

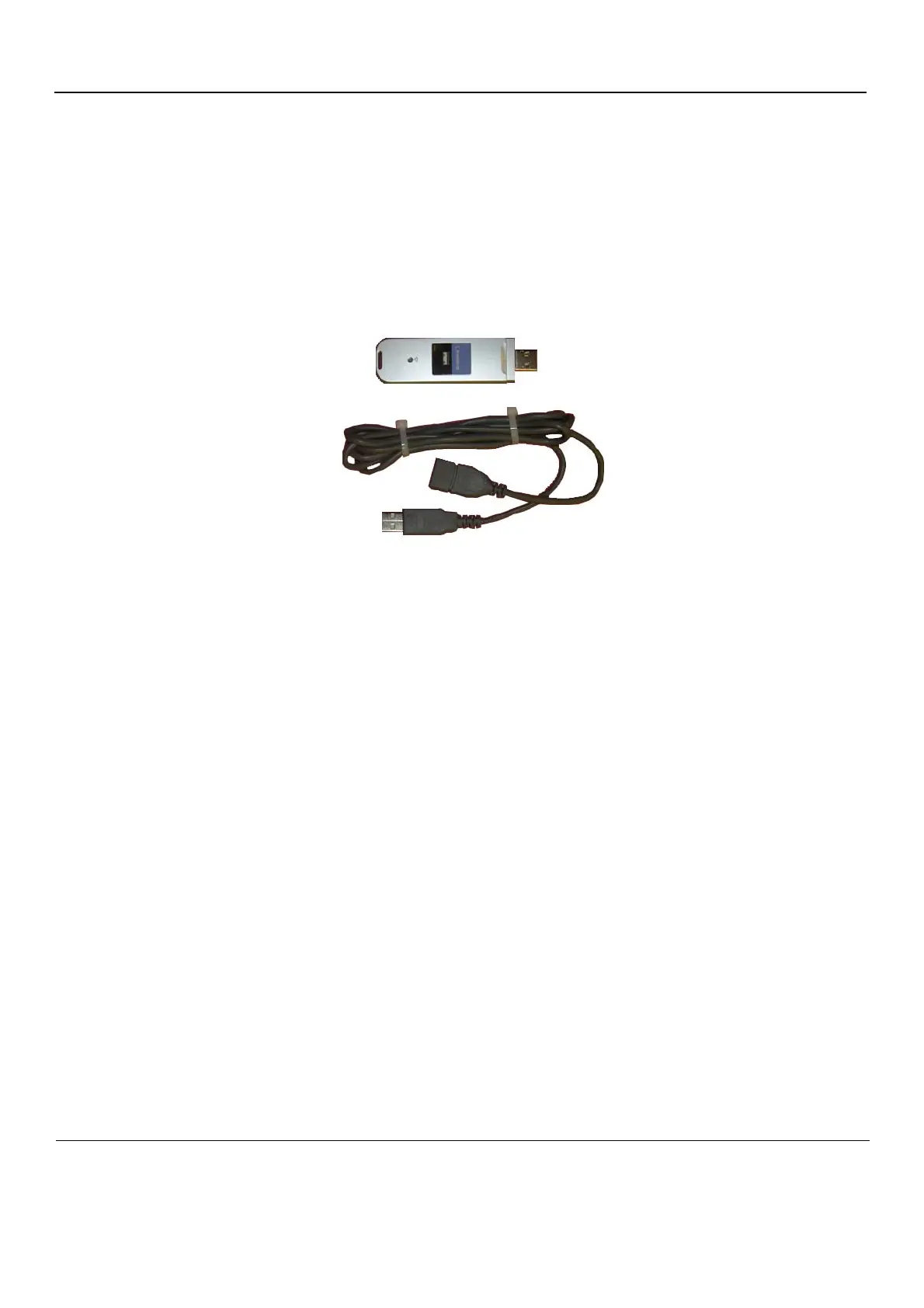

Figure 8-267 Wireless USB Network Adaptor
