Chapter 8 - Replacement Procedures 8-93
PRELIMINARY
8-4-15 Speaker Replacement Procedure
8-4-15-1 Tools
Use the appropriate flat screwdriver and T10 Torx screwdriver (T8 may also be used), as indicated in
the Speaker replacement procedure.
8-4-15-2 Preparation
Shut down the Vivid S5 N or Vivid S6 N ultrasound unit, as described in 4-2-3 "Power Shut Down" on
page 4-7.
8-4-15-3 Speaker Removal Procedure
1.) Remove the Keyboard Assembly, as described in the “Keyboard Assembly Removal Procedure” on
page 8-39.
2.) Carefully place the Keyboard Assembly upside-down on a flat, clean, stable surface.
3.) Remove the Keyboard Bottom Cover, as described in the “Keyboard Bottom Cover Removal
Procedure” on page 8-59.
4.) Disconnect the two cables from the Extended Keyboard, as indicated in Figure 8-106.
NOTICE
When performing these procedures, take precautions to avoid damage of
electrostatic-sensitive components. Always have the ESD wrist strap
connected either to the DIB chassis or to the GND plug at the rear of the
scanner, and to your hand.
If a battery is present, first remove the battery as it contains stored energy.
Refer to “Battery Removal Procedure” on page 8-116.

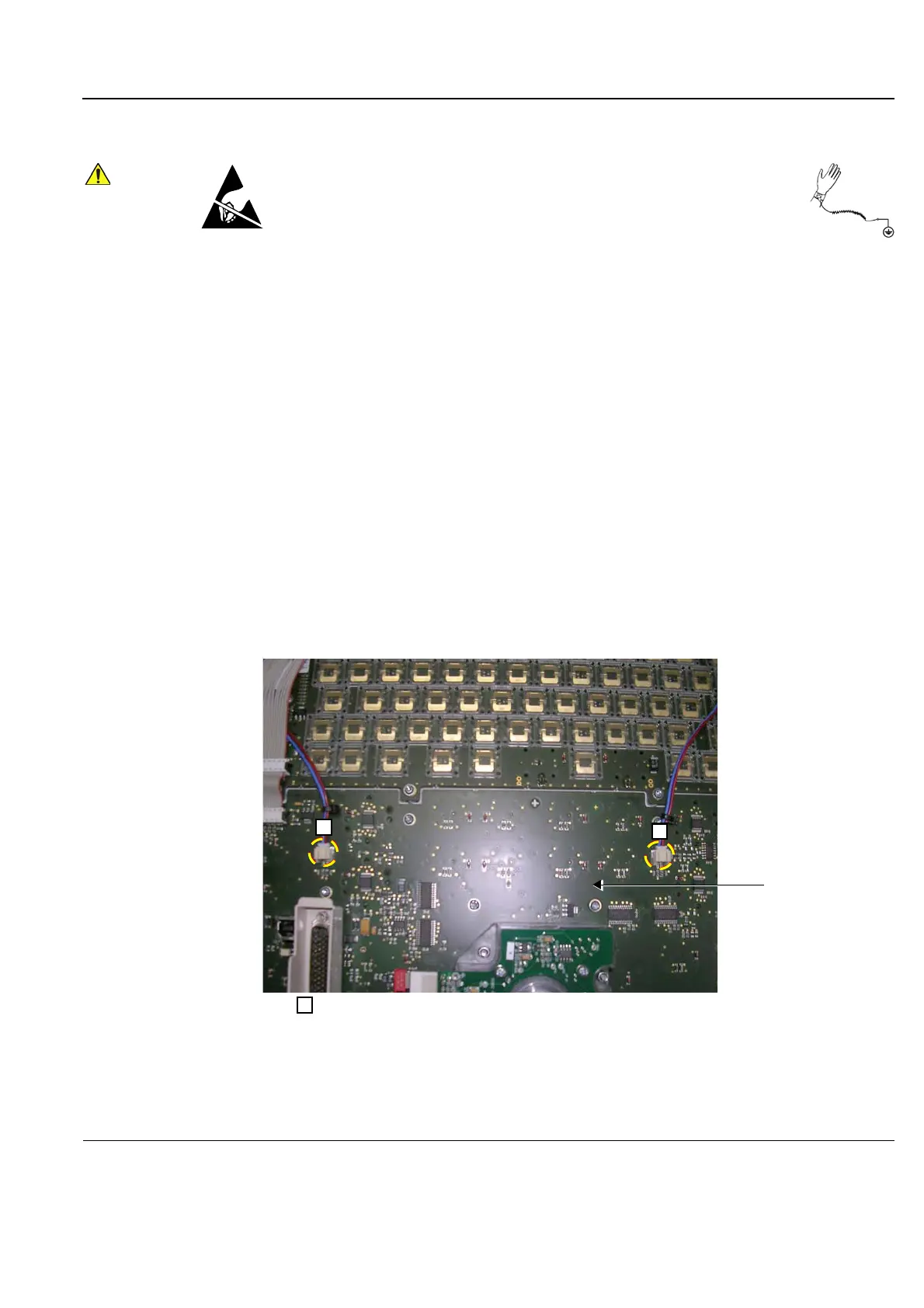

Figure 8-106 Cables Connected to the Extended Keyboard
Extended Keyboard
C
Note: = cable to be disconnected
C
C
