Chapter 8 - Replacement Procedures 8-127
PRELIMINARY
8-6-4-6 Hard Disk Duplication
NOTE: In some instances, it may be necessary to duplicate a customer’s existing hard disk. The duplication
procedure is performed using a USB to SATA / PATA adaptor. This will allow you to connect the original
hard disk to another hard disk and copy the user content of Partition E (the Archive) and Partition D
(User Definitions).

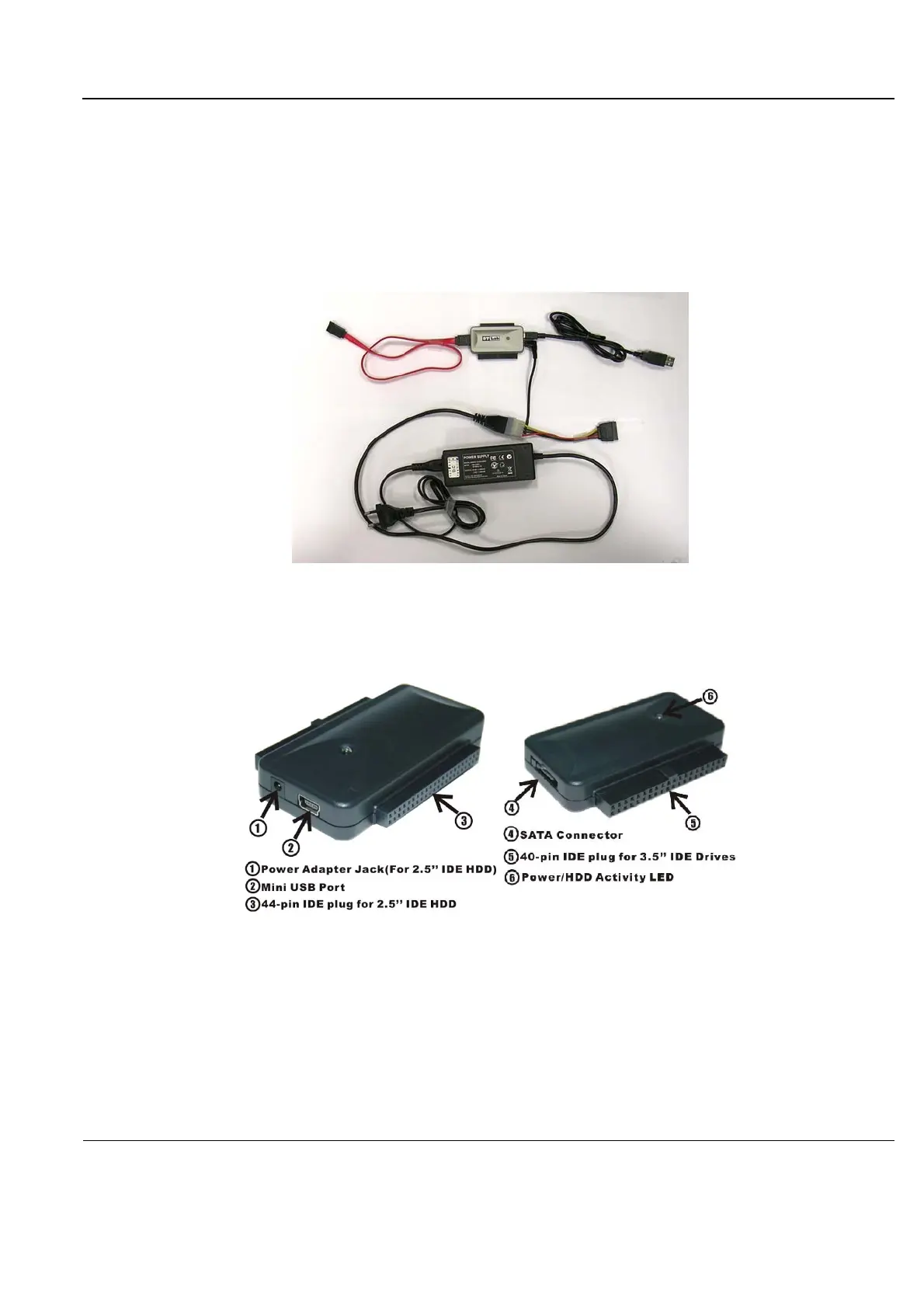

Figure 8-156 below illustrates the USB Hard Disk Connector and Power Supply. The USB-to-SATA/
PATA adaptor (referred to in the procedure as “the adaptor”) is shown in Figure 8-157.
Figure 8-156 USB Hard Disk Connector with Power Supply
Figure 8-157 USB-to-SATA/PATA Adaptor
