7-38 Section 7-4 - Performing Front End (FE) Diagnostics
PRELIMINARY
7-4-3-3 RFI FE Cache Test (cont’d)
If the problem persists, this indicates that either the specific board you tested is faulty or that
another board that supports the operation of that board is faulty. Contact your local
GE HEALTHCARE field engineer for assistance.
11.)Trackball to the Exit button and press Set to close the View Test Log dialog box.
12.)Press the <Esc> button on the keyboard to close the Diagnostic Test Window.
7-4-3-4 RFI Analog Circuits Test
NOTE: For a description of this test, refer to the information provided in • "RFI Analog Circuits Test" on page 7-
12.
NOTE: When performing this test, no probe should be connected to the system and nothing should be touching
the probe connectors!
1.) In the Diagnostic Test window, trackball to RFI Analog Circuits Test in the list of RFI tests available
for selection from the Diagnostic Test Tree (see Figure 7-16 "RFI Analog Circuits Test" on page 7-
38) and press Set. The RFI Analog Circuits Test name is displayed under Execute; the relevant
system component to be tested are highlighted light blue in the Schematic View (RFI), as shown
below:
2.) As indicated in the Special Instructions area, disconnect any probes currently connected to the
system and make sure that nothing is touching the probe connectors.
In order to access an individual board test, it is necessary to insert the service dongle from system boot-
up and enter the Service Password.

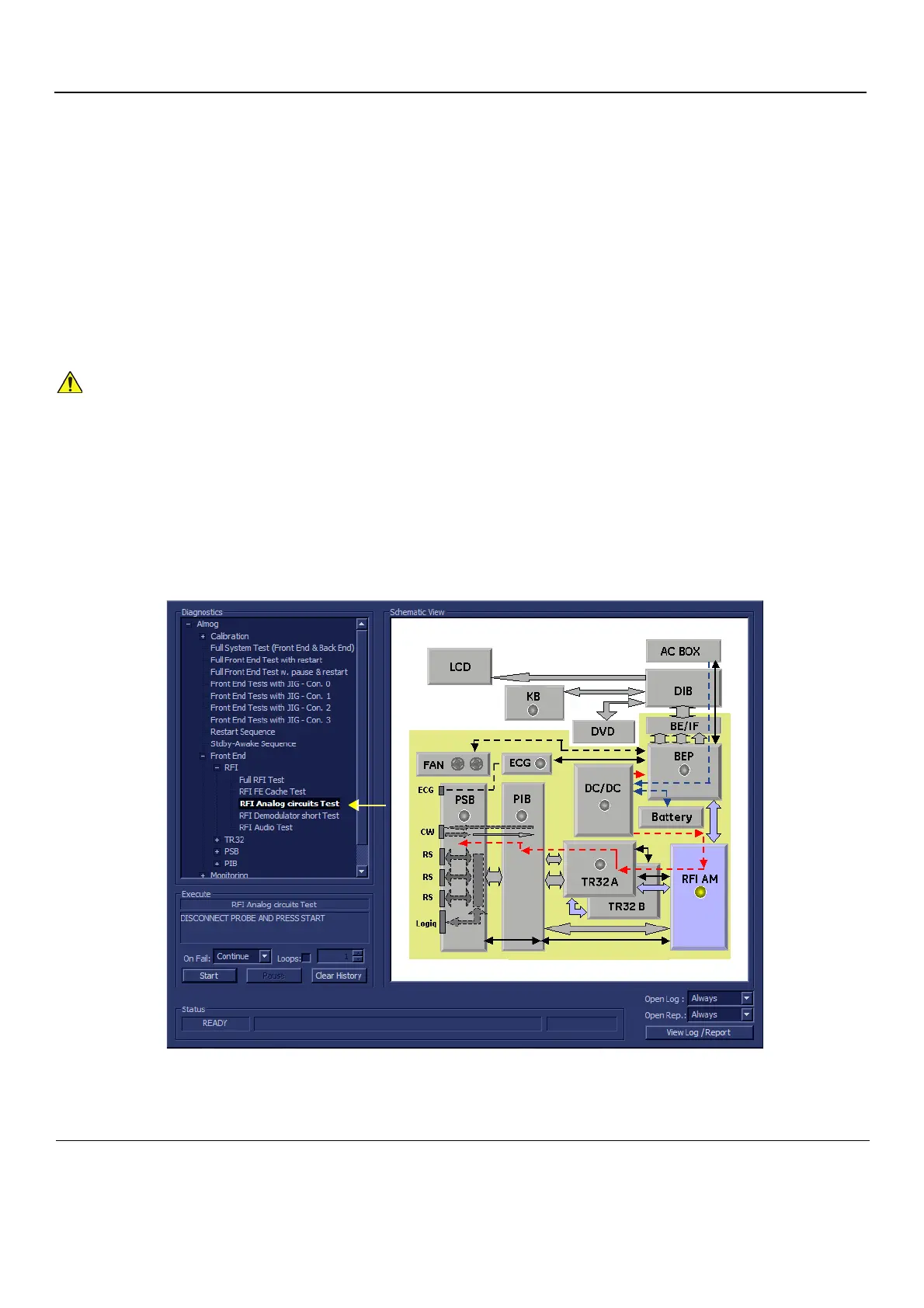

Figure 7-16 RFI Analog Circuits Test
