ART NUMBER FN091065, REVISION 2 VS5 N AND VS6 N SERVICE MANUAL
Chapter 5 - Components and Function (Theory) 5-37
PRELIMINARY

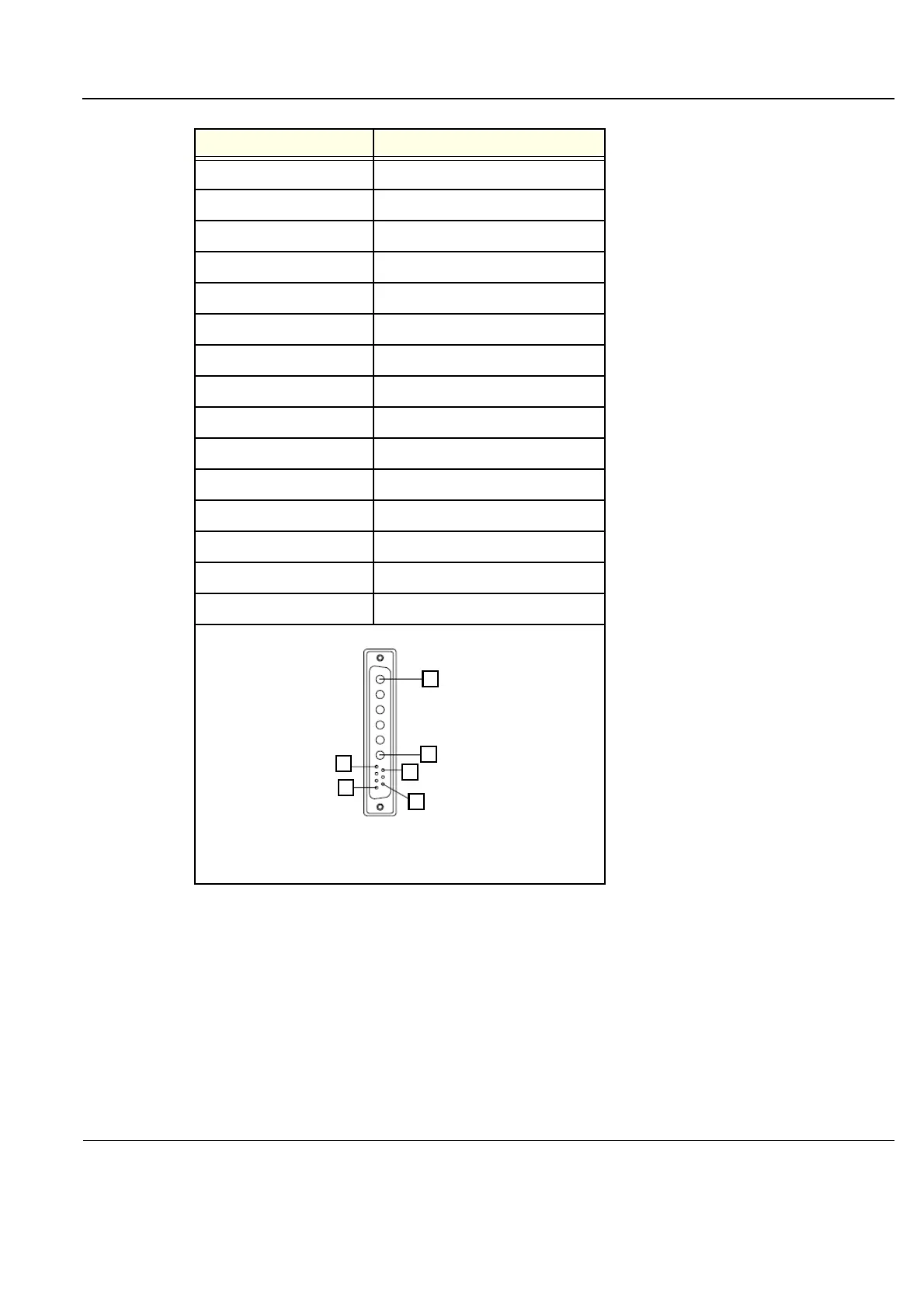

Table 5-15 DIB Power Connector - J7
Pin Number Pinout
A1 5V DC
A2 5V DC
A3 12V DC
A4 GND
A5 20V DC
A6 GND
1 Not in use
2 Not in use
3 Not in use
4 PWR CONT
5 Not in use
6 Not in use
7 Fan status
Case 1 Shield
Case 2 Shield
A1
1
4
A6
J7 Connector - Cable Side
13W6S
5
7
