9-6 Section 9-4 - Mechanical Hardware Parts
PRELIMINARY
Section 9-4 Mechanical Hardware Parts (cont’d)

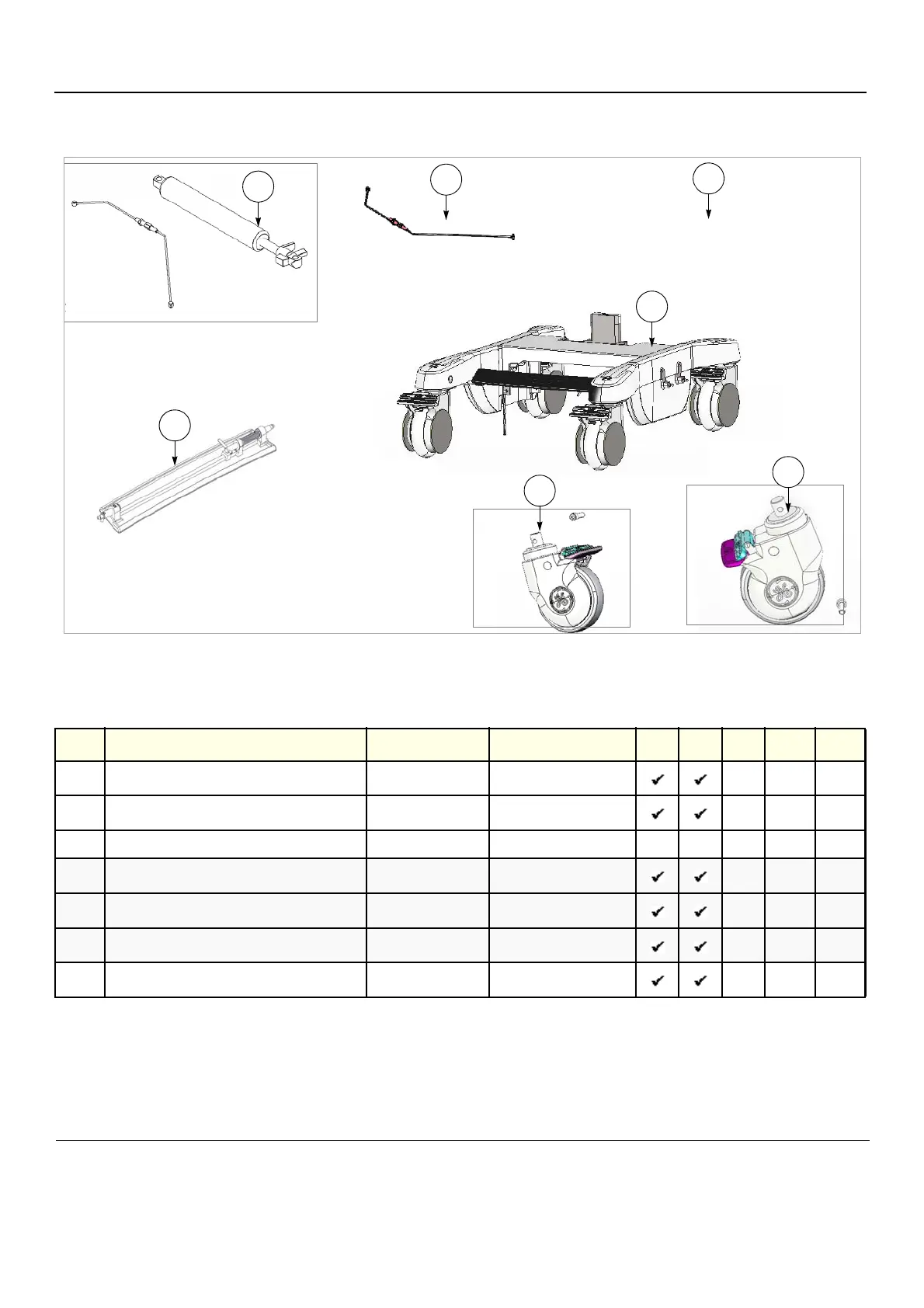

Figure 9-4 Mechanical Hardware Parts - Diagram 2
Table 9-5 Mechanical Hardware Parts - Diagram 2
Item Part Name Part Number Description S5 S6 Qty CRU FRU
301 Gas Spring S2420891 1 N Y
302 Gas Spring Cable S2420834 1 N Y
303 NOT USED - - - - - -
304 Base Console Assy. S2421634 1 N Y
305 Foot Rest Assy VS5N/VS6N. S2420478 1 N Y
306 Wheel: Brake Locking S2420671 Front Wheel 2 N Y
307 Wheel: Swivel Locking S2420672 Rear Wheel 2 N Y
Front Wheel
Rear Wheel
301
302
303
304
305
306
307
NOT USED
