Chapter 3 - System Setup 3-7
PRELIMINARY

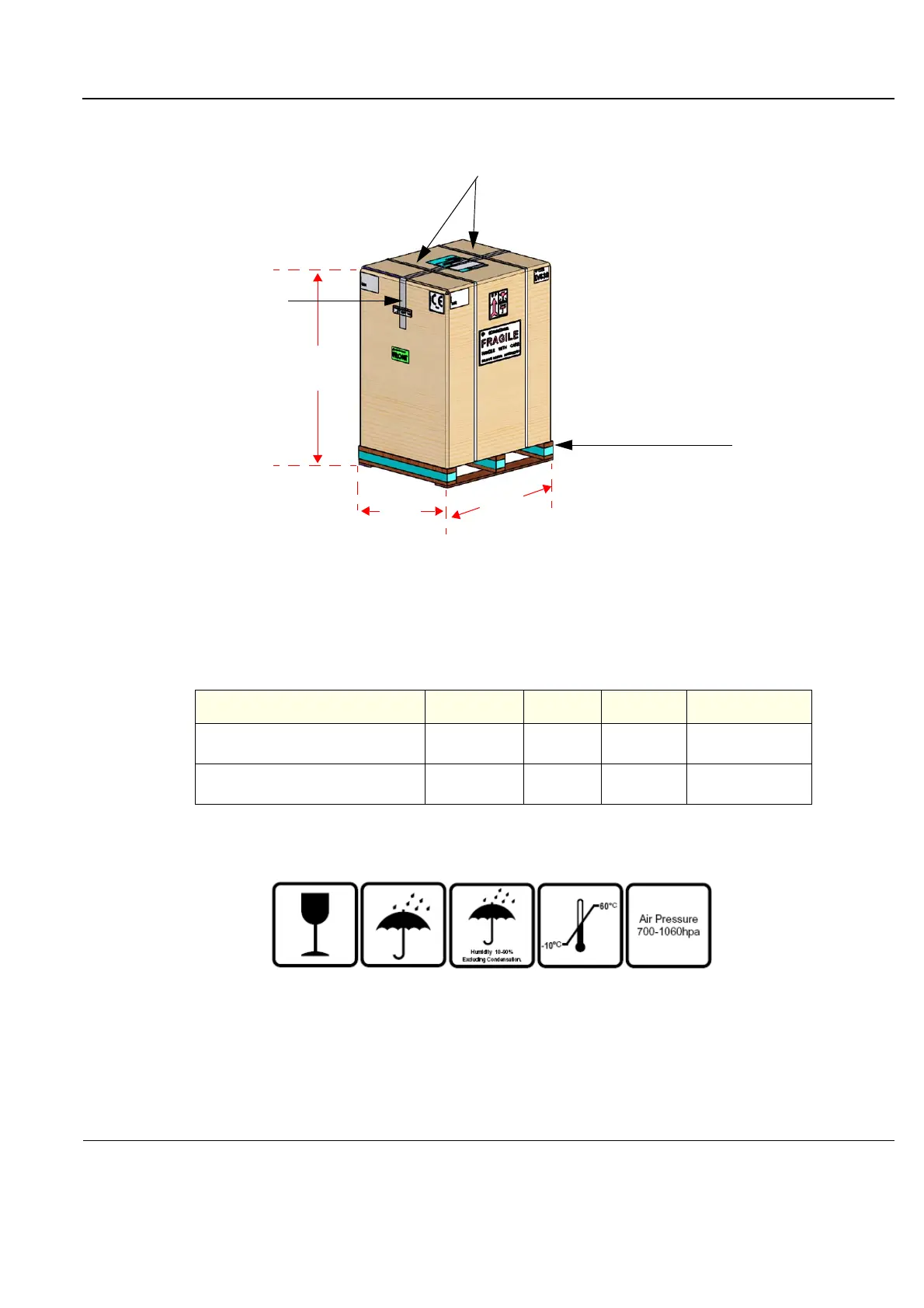

Figure 3-3 Shipping Carton - Vivid S5 N and Vivid S6 N Only
Table 3-4 Shipping Cartons - Dimensions and Weights
Description Height Width Depth
Weight
a
a. Weight is approximate and will vary depending upon the supplied peripherals
Vivid S5 N or Vivid S6 N scanner
with peripherals and accessories
157 cm
62 ins
73 cm
29 ins
87 cm
34 ins
105 kgs
231 lbs
Vivid S5 N or Vivid S6 N scanner only
119 cm
47 ins
73 cm
29 ins
87cm
34 ins
95 kgs
209 lbs
Figure 3-4 Additional Labels on Shipping Carton
Height
119 cm (47 in)
Width
73 cm (29 in)
FRONT
Depth
87 cm (34 in)
Note: Weight = 95 Kgs (209 lbs)
Plastic Straps
Adhesive Tape
Wooden Base
