◼ Phase initialization when SW method 5 is used

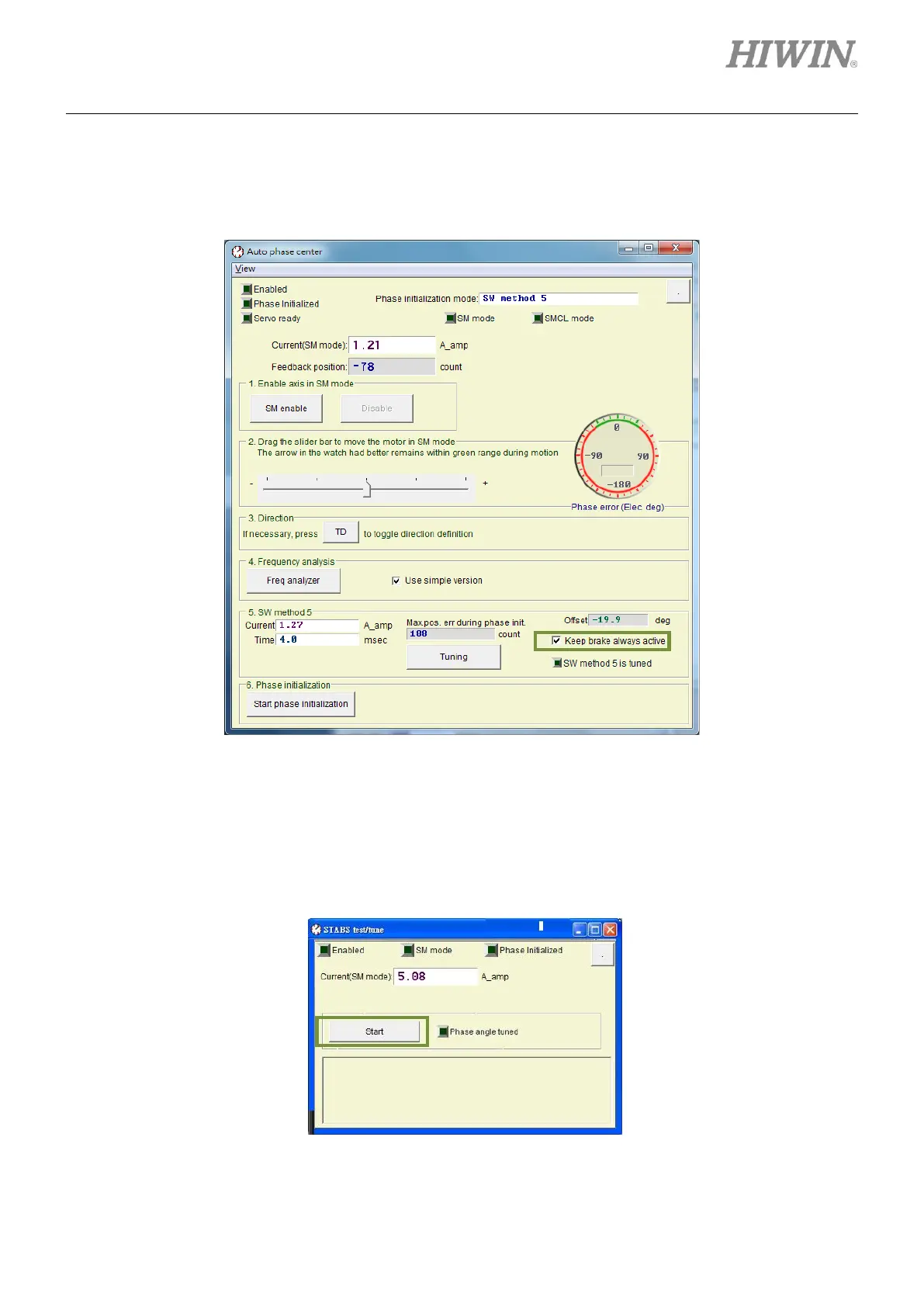

When motor is used in vertical direction and is with mechanical brake, check the checkbox of Keep
brake always active before phase initialization.
Figure5.3.2.2
◼ Phase initialization when STABS is used
Click on Tune button in 5. STABS test/tune to open STABS test/tune window and click on Start
button. The servo drive starts to output current to drive motor. After the motor stops, a message will
appear to indicate tuning has completed. Then, phase initialization can be started.
Figure5.3.2.3
