Step 1: Set the desired acceleration, deceleration and travel distance. Perform point-to-point (P2P)
motion.
Step 2: Open Scope and observe position error and reference velocity, as figure 6.6.6.2.
Step 3: Click on (Plot view) in Scope window for analyzing waveforms.

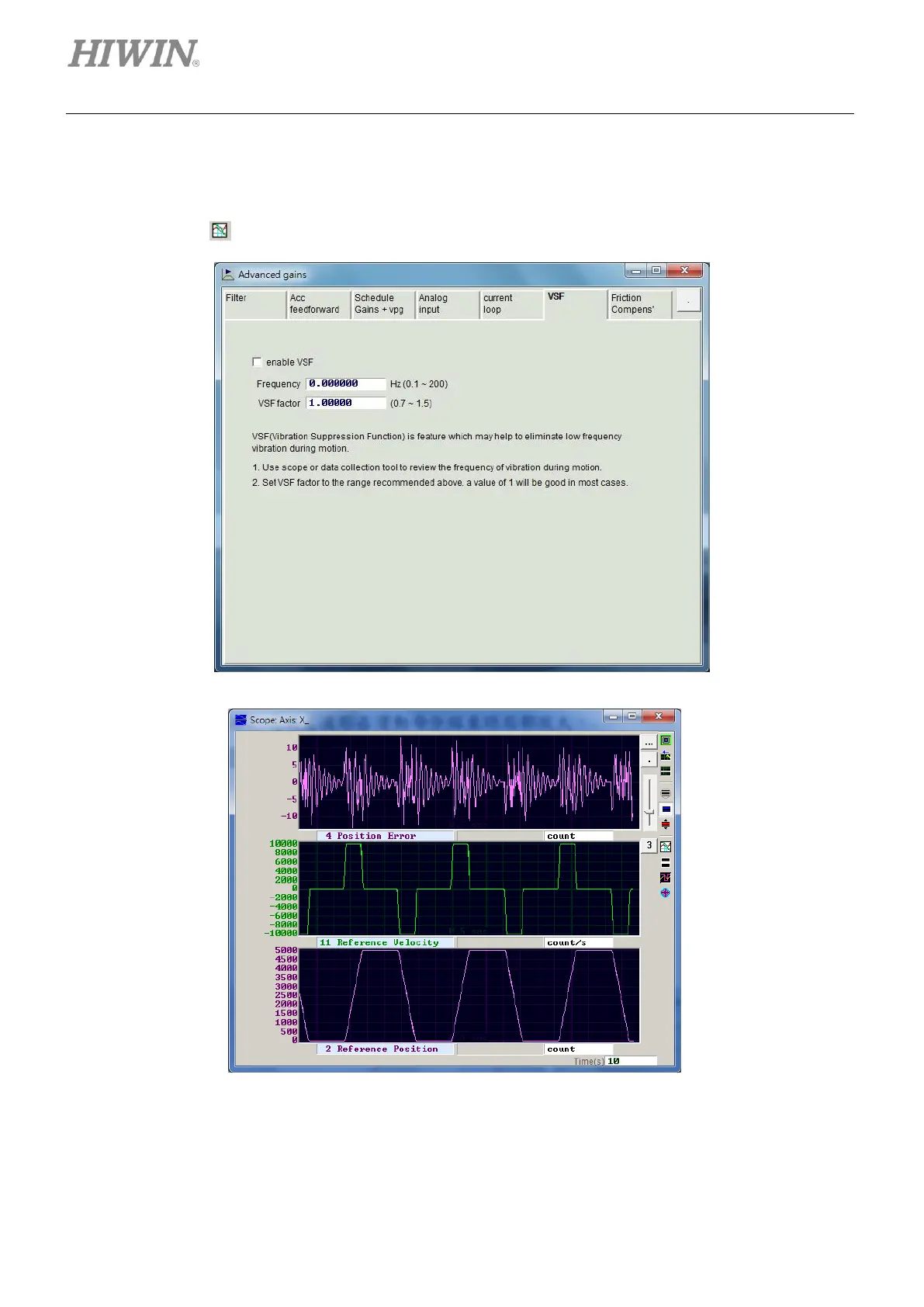

Figure6.6.6.1 Vibration suppression filter
Figure6.6.6.2
