Servo Drive Configuration D1 Servo Drive User Manual
5-4 HIWIN MIKROSYSTEM CORP.

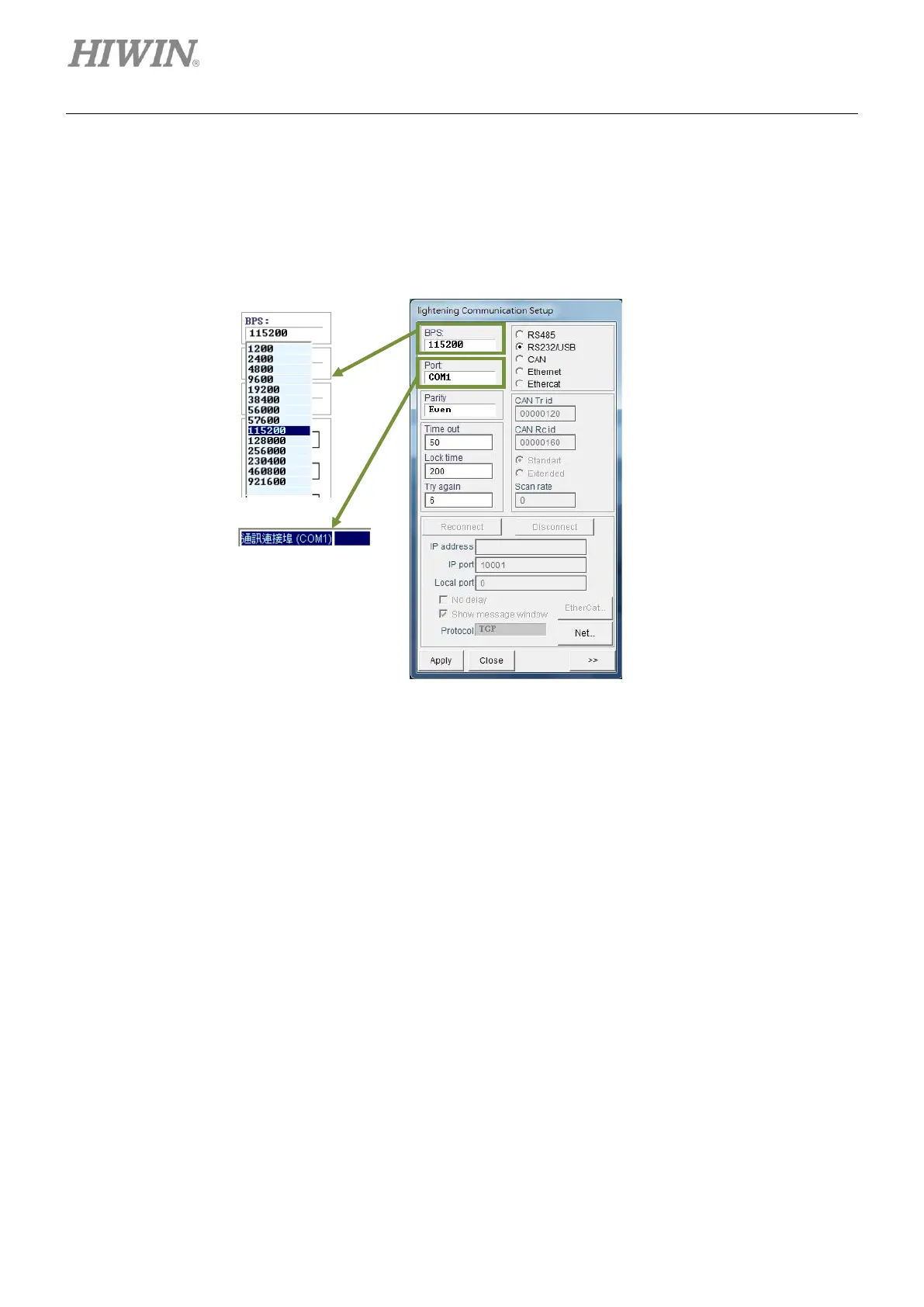

The communication setting window is shown as figure 5.1.2.2. In lightening Communication Setup
window, BPS field shows transmission rate. The default setting of transmission rate is 115,200 and
should not be changed. Port field shows communication port. All the communication ports of PC will
be listed. Select the communication port in use. Normally Lightening can successfully communicate
with the servo drive without changing the values in other fields.
Figure5.1.2.2
