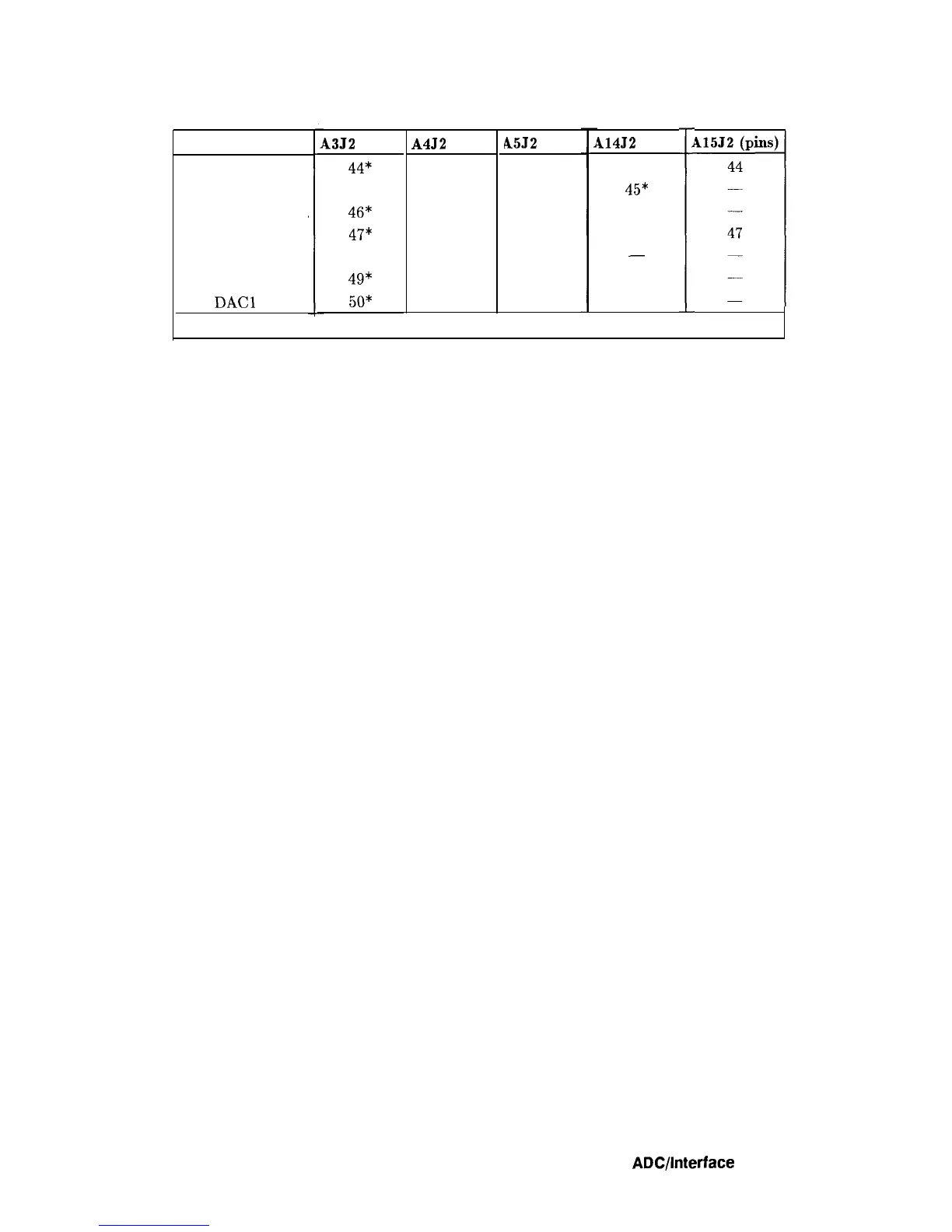

Table 7-1. W2 Control Cable Connections (2 of 2)
Signal
A GND
SCAN RAMP
VIDEO TRIGGER
A GND
NC
R/T DAC2
R/T
DACl
43J2
(pins)
44*
45
46*
47*
49*
50*
* Indicates signal source connectors
A4J2
(pins)
44
47
A5J2
(pins)
7
4
114J2
(pins)
44
45*
47
-
50
i
I
ADC/lnterface
Section 7-3
255
257
