Electrostatic Discharge
Electrostatic discharge (ESD)
can damage or destroy electronic components. Therefore,
all work performed on assemblies consisting of electronic components should be done at a
static-free workstation. Figure l-2 is an example of a static-safe work station using two kinds
of ESD protection:
w
Conductive table mat and wrist-strap combination.
n Conductive floor mat and heel-strap combination.
These methods may be used together or separately.
Bui
lding
Ground
1
MegOhm
Resistor
I
/TV
hhirist
StroD\
*

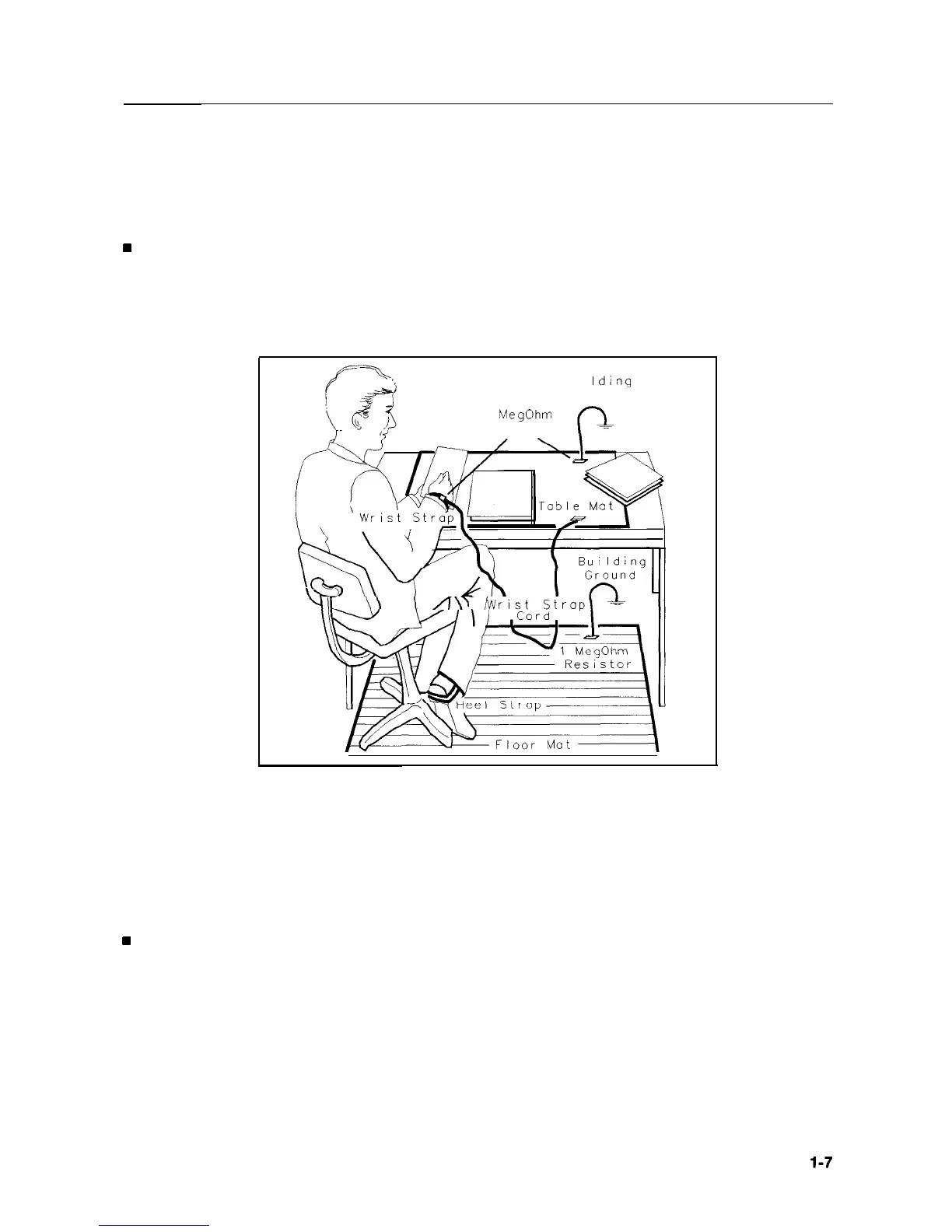

Figure 1-2. Example of a Static-Safe Workstation
Reducing Potential for ESD Damage
The suggestions that follow may help reduce ESD damage that occurs during
nstrument
testing and servicing.
w
Before connecting any coaxial cable to an analyzer connector for the first time each day,
momentarily ground the center and outer connectors of the cable.
n Personnel should be grounded with a resistor-isolated wrist strap before touching the center
in of any connector and before removing any assembly from the unit.
n Be sure all instruments are properly earth-grounded to prevent build-up of static discharge.
5111125
