HP 8560A Service Manual

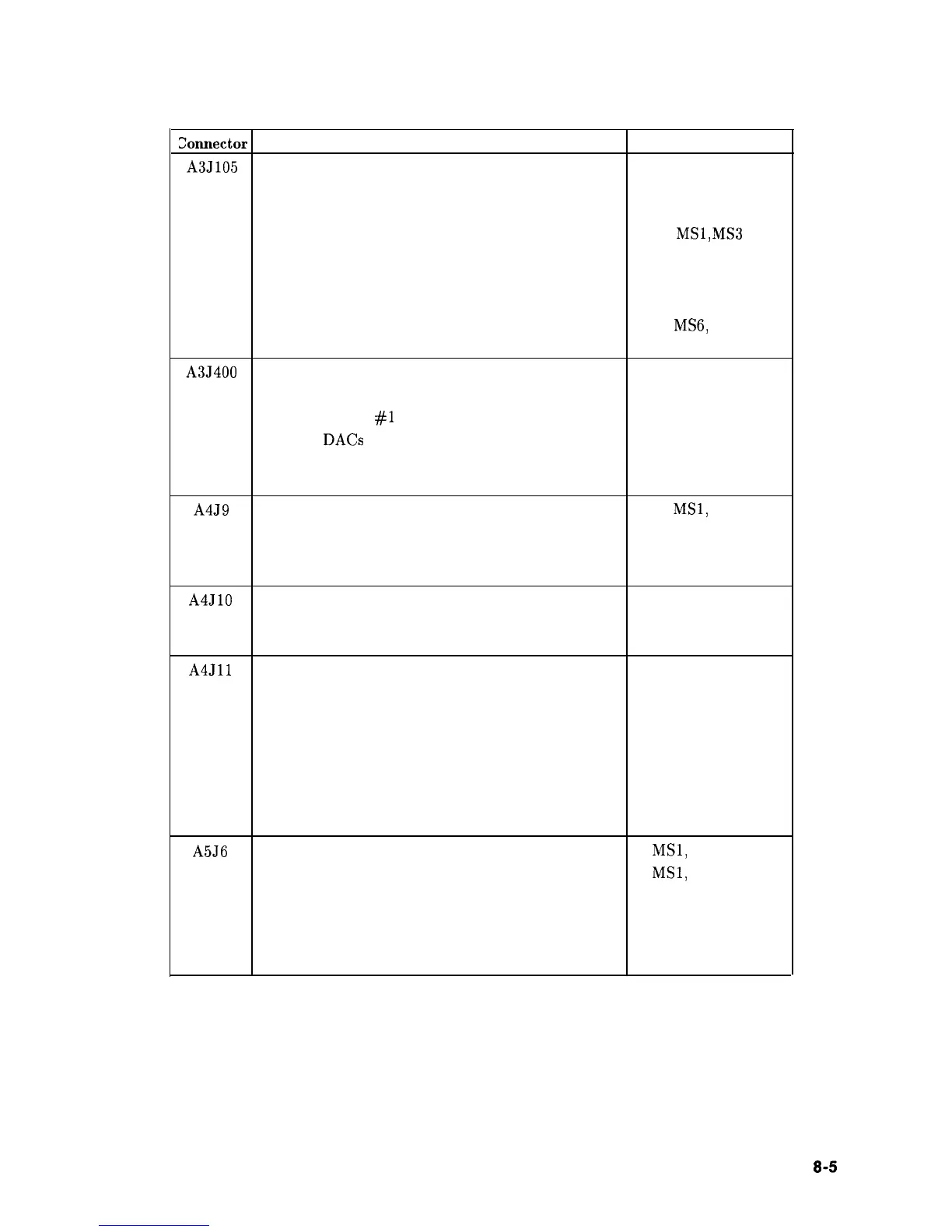

Table 8-2. TAM Tests Versus Test Connectors (1 of 2)
Zonnector
Manual Probe Troubleshooting Test
Measured Signal Liner
A3J105
Video Input to Interface
MS1
Video to Rear Panel
MS2
Video MUX
MS3
Log Offset/Log Expand MSl,MS3
Video Filter Buffer Amplifier
MS3, MS5, OS1
Video Peak Detectors
MS5, MS6
ADC MUX
MS6
Variable Gain Amplifier
MS6, MS7
Track and Hold
MS7, MS8
A3J400 Video Trigger DAC MS1
Revision MS2
Real Time DAC #l
MS3
RF Gain DACs
MS6
ADC Start/Stop Control MS7
Trigger
MS8
A4J9
Cal Osc Sweep Gen Hardware
MSl, MS2
Cal Osc Tune Line Test
MS3
Cal Osc ALC Test MS4
Cal Osc Sweep Gen Output
MS6
A4510
Detected log input voltage
MS1
Limiter bias at end of (+)bias chain
MS2
Positive 15 V Supply
MS5
A4Jll
No connection
MS1
Linear video tapped out of log amplifier
MS2
Buffered log video (before compensation)
MS3
Log video after temperature and offset compensation
MS4
Revision code MS5
No connection
MS6
-15 V
MS7
Video out after video offset
MS8
A5J6
1st Step Gain Stage 1
MSl, MS2, MS8
1st Step Gain Stage 2
MSl, MS2, MS3
1st XTAL Pole Stage
MS2, MS3, MS4
2nd
XTAL Pole Stage
MS3, MS4, MS5
1st LC Pole Stage 1
MS4, MS5, MS6
1st LC Pole Stage 2
MS5, MS6, MS7
