HP 8560A

*ATTEN l0dB
RL OdBm
lOdB/
1
I /
I I
I
1
1
I
CENTER 300.0000MHz
SPAN 500 0kHz
*RBW 1.0MHz
VBW 1.0MHz
SWP 50ms
SK182

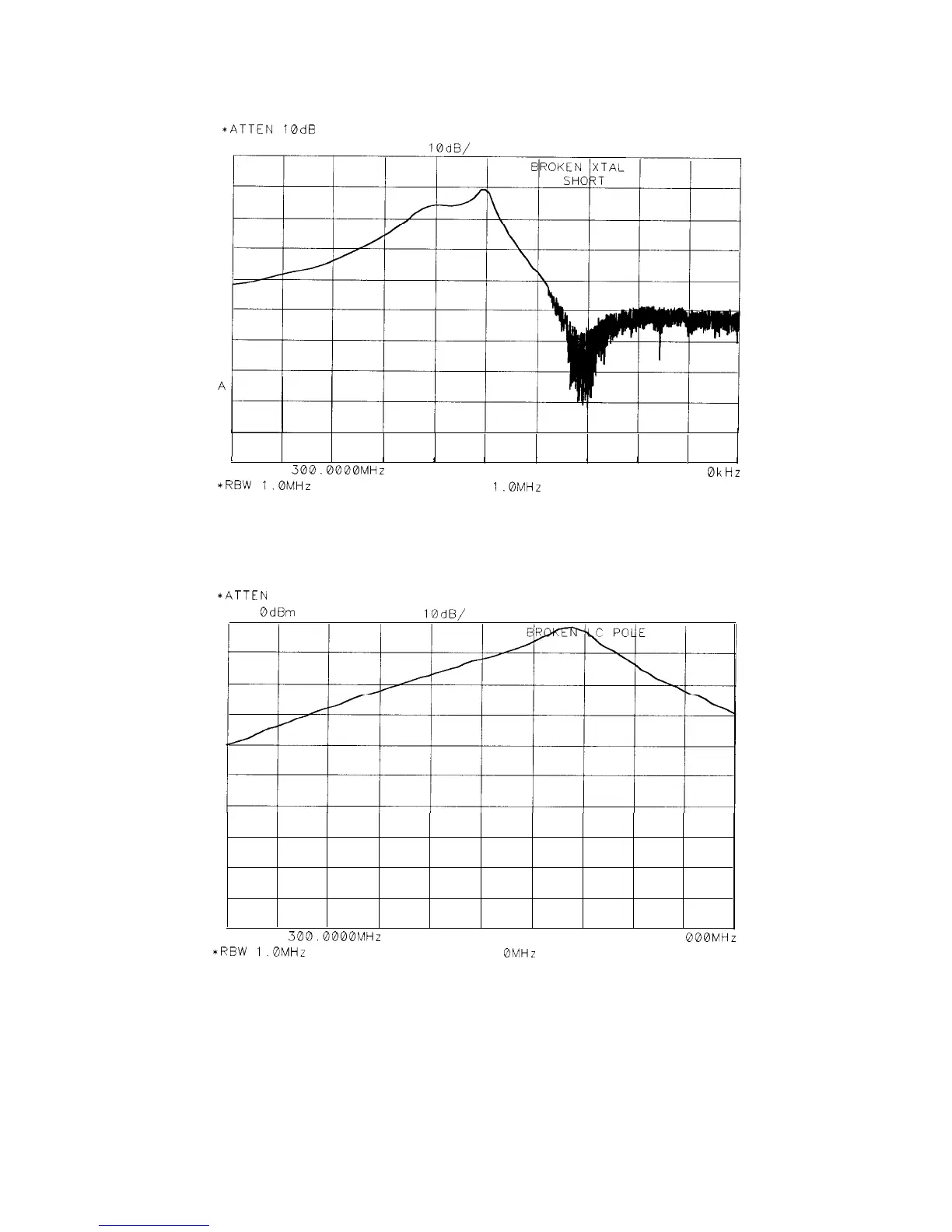

Figure 8-13. Faulty Crystal Short
*ATTEN 10dB
RL 0dBm
10dB,’
A
CEN
TER 300.0000MHz
SPAN 3 000MHz
cRBW 1.0MHz
VBW 1 0MHz
SWP 50ms
SK183
Figure 8-14. Faulty LC Pole
IF Section 8-31
